SLPX682M035A7P3
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR SLPX 35V 6800muF ±20% 0.866Dia 22.00mm
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.7456
≥1 USD $2.7456
≥10 USD $2.11288
≥100 USD $1.941104
≥500 USD $1.60952
≥1000 USD $1.294093
≥3000 USD $1.132331
Inventory: 1071
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height Seated (Max) 1.575 40.00mm
Height 40mm
Diameter 22mm
Technical
Ripple Current @ High Frequency 3.71A @ 20kHz
Ripple Current @ Low Frequency 2.97A @ 120Hz
Life (Hours) 3000 hours
Polarization Polar
Test Frequency 120Hz
Ripple Current 2.97A
Leakage Current 1.46356mA
Lifetime @ Temp 3000 Hrs @ 85°C
Voltage 35V
Lead Diameter 1.5 mm
Lead Spacing 0.394 10.00mm
ESR (Equivalent Series Resistance) 78mOhm @ 120Hz
Lead Length 6.3mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 10mm
Voltage - Rated DC 35V
Capacitance 6800μF
Applications General Purpose
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination Snap in
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.866Dia 22.00mm
Series SLPX
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material Aluminium
Number of Pins 2
Package / Case Radial, Can - Snap-In
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 24 Weeks

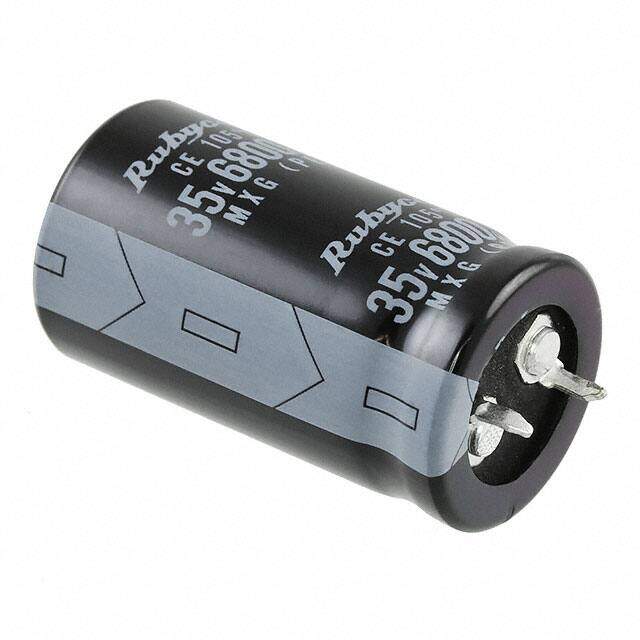

Alternative Model
