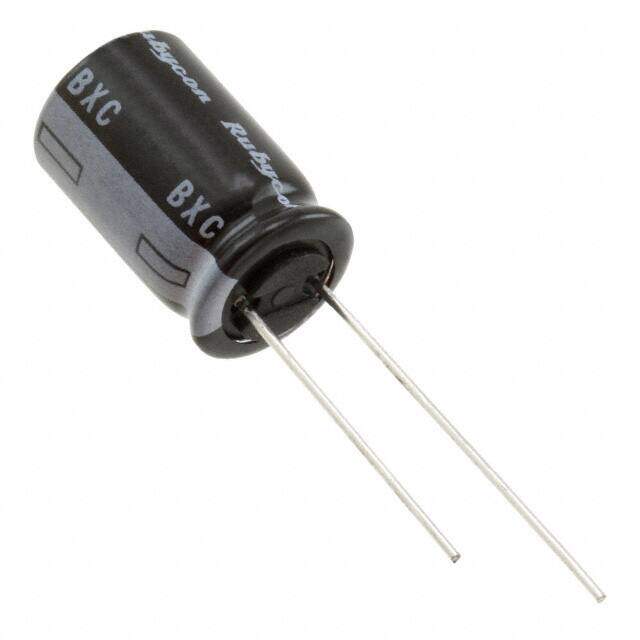

250BXC6.8MEFCT810X12.5
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
BXC Radial Can aluminum electrolytic capacitor 0.394Dia 10.00mm ±20% 6.8muF 250V
PDF
/
Inventory: 6788
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Technical
Operating Temperature -25°C~105°C
Packaging Tape & Box (TB)
Series BXC
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Applications General Purpose
Voltage - Rated 250V
Capacitance 6.8μF
Lead Pitch 5.0038mm
Lead Spacing 0.197 5.00mm
Lifetime @ Temp 8000 Hrs @ 105°C
Ripple Current 75mA
Polarization Polar
Life (Hours) 8000 hours
Ripple Current @ Low Frequency 75mA @ 120Hz
Ripple Current @ High Frequency 250mA @ 100kHz
Dimensions
Height Seated (Max) 0.571 14.50mm
Compliance
RoHS Status ROHS3 Compliant
