16WA680MEFCT810X9
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

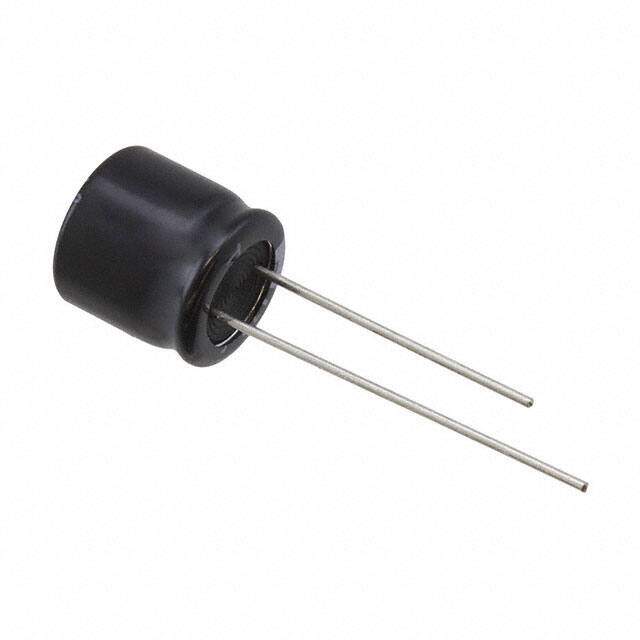

WA Radial Can aluminum electrolytic capacitor 0.394Dia 10.00mm ±20% 680muF 16V
PDF
/
Inventory: 9208
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.413 10.50mm
Technical
Ripple Current @ High Frequency 612mA @ 10kHz
Ripple Current @ Low Frequency 510mA @ 120Hz
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 510mA
Lifetime @ Temp 2000 Hrs @ 85°C
Lead Spacing 0.197 5.00mm
Lead Pitch 5.0038mm
Reach Compliance Code unknown
Capacitance 680μF
Voltage - Rated 16V
Applications General Purpose
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.394Dia 10.00mm
Series WA
Published 2015
Packaging Tape & Box (TB)
Operating Temperature -40°C~85°C
Physical
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 22 Weeks
