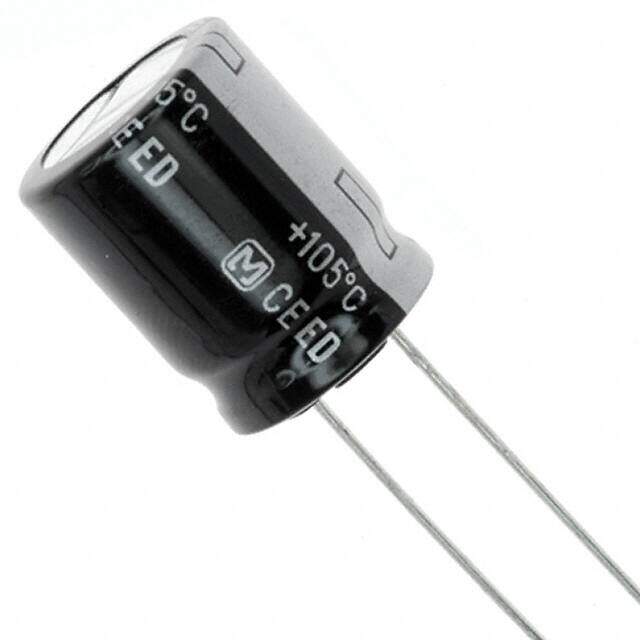

EEU-ED2E470S
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR ED 250V 47muF ±20% 0.630Dia 16.00mm
PDF
/
Buying Options
Total Price: USD $1.49
Unit Price: USD $1.4872
≥1 USD $1.4872
≥10 USD $1.11584
≥100 USD $0.8338
≥500 USD $0.587215
≥1000 USD $0.528493
≥3000 USD $0.508913
Inventory: 149
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Can
Surface Mount NO
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2006
Series ED
Size / Dimension 0.630Dia 16.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Voltage - Rated 250V
Capacitance 47μF
Terminal Pitch 7.5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.295 7.50mm
Rated (DC) Voltage (URdc) 250V
Lifetime @ Temp 10000 Hrs @ 105°C
Leakage Current 0.715mA
Polarization Polar
Tan Delta 0.15
Ripple Current @ Low Frequency 396mA @ 120Hz
Ripple Current @ High Frequency 990mA @ 100kHz
Dimensions
Diameter 16mm
Height Seated (Max) 0.787 20.00mm
Length 20mm
Compliance
RoHS Status RoHS Compliant
