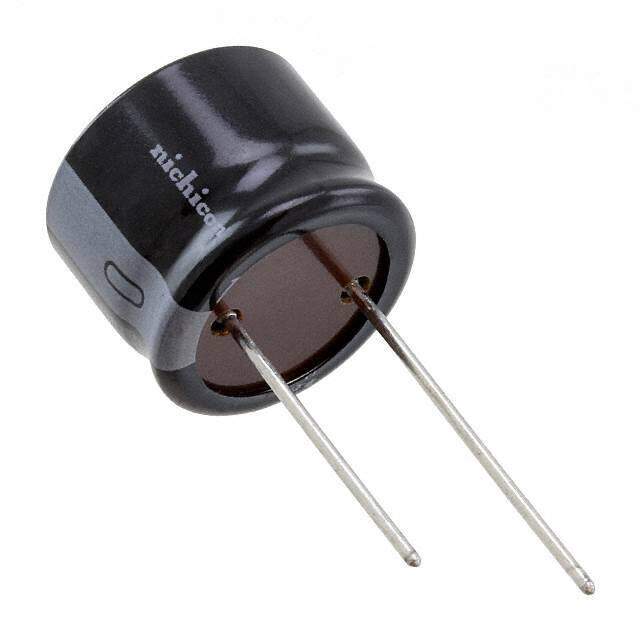

URS2E470MRD6
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR URS 250V 47muF ±20% 0.787Dia 20.00mm
PDF
/
Inventory: 6391
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series URS
Size / Dimension 0.787Dia 20.00mm
Tolerance ±20%
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
HTS Code 8532.22.00
Capacitance 47μF
Voltage - Rated DC 250V
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 570μA
Ripple Current 420mA
Polarization Polar
Life (Hours) 2000 hours
Tan Delta 0.2
Ripple Current @ Low Frequency 420mA @ 120Hz
Dimensions
Diameter 20mm
Height 15mm
Height Seated (Max) 0.669 17.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
