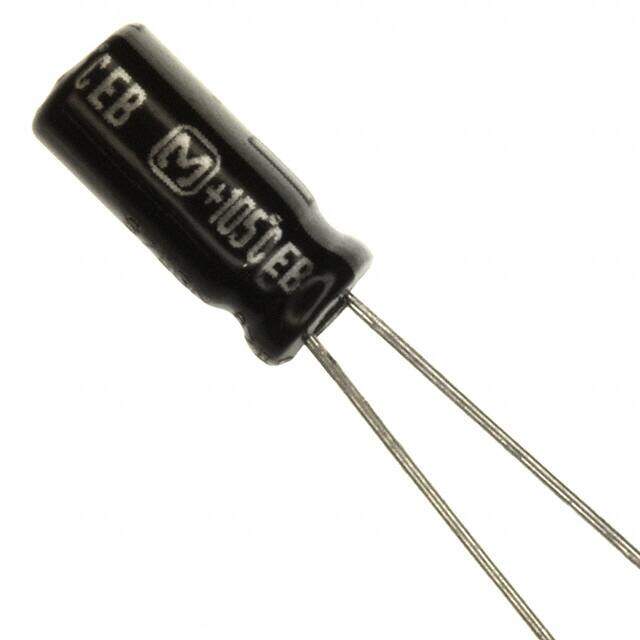

EEU-EB1A101SB
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR EB 10V 100muF ±20% 0.197Dia 5.00mm
PDF
/
Inventory: 6233
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Box (TB)
Series EB
Size / Dimension 0.197Dia 5.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 100μF
Voltage - Rated DC 10V
Lead Pitch 5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Lead Diameter 500 μm
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 0.01mA
Ripple Current 66mA
Polarization Polar
Life (Hours) 5000 hours
Tan Delta 0.3
Ripple Current @ Low Frequency 66mA @ 120Hz
Ripple Current @ High Frequency 85.8mA @ 100kHz
Dimensions
Diameter 5mm
Height 11mm
Height Seated (Max) 0.472 12.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
