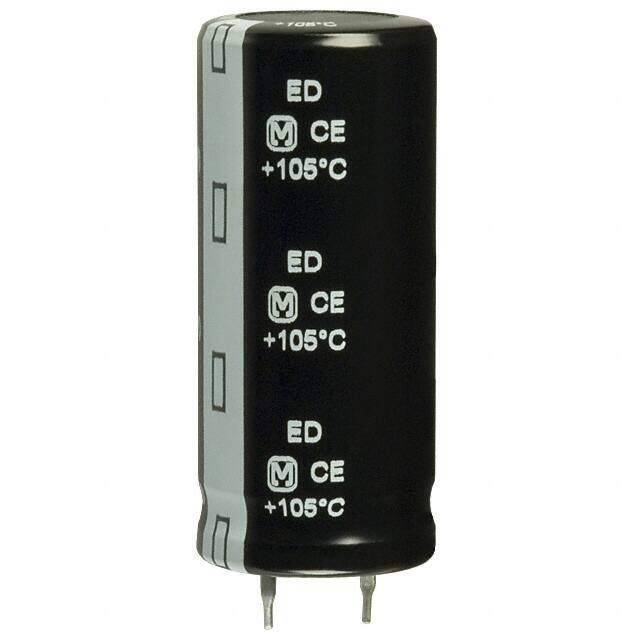

EET-ED2W181BA
RoHS
/
Package Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR TS-ED 450V 180muF ±20% 0.866Dia 22.00mm
PDF
/
Inventory: 7677
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Number of Pins 2
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2001
Series TS-ED
Size / Dimension 0.866Dia 22.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Resistance 737mOhm
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 180μF
Voltage - Rated DC 450V

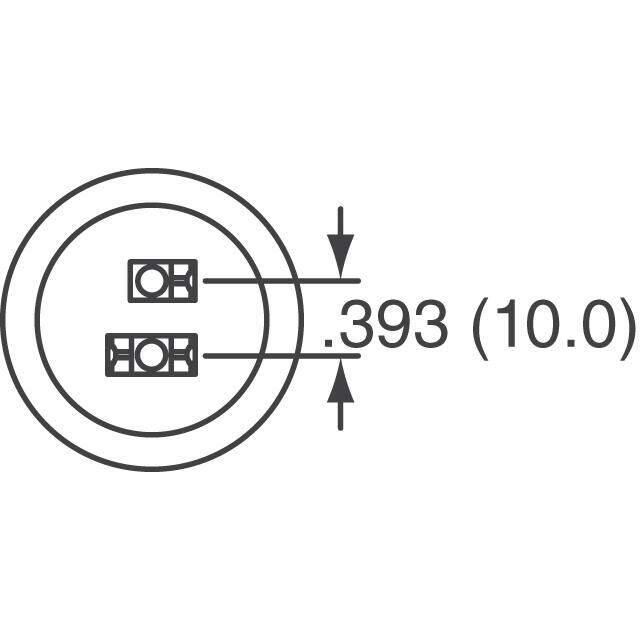

Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 737mOhm @ 120Hz
Lead Spacing 0.394 10.00mm
Lead Diameter 800 μm
Voltage 450V
Lifetime @ Temp 3000 Hrs @ 105°C
Leakage Current 0.85381mA
Ripple Current 1.12A
Test Frequency 120Hz
Polarization Polar
Life (Hours) 3000 hours
Tan Delta 0.15
Ripple Current @ Low Frequency 1.12A @ 120Hz
Ripple Current @ High Frequency 1.6A @ 100kHz
Dissipation Factor 15 %
Dimensions
Diameter 22mm
Height 50mm
Height Seated (Max) 1.969 50.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
