MAL215947181E3
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description

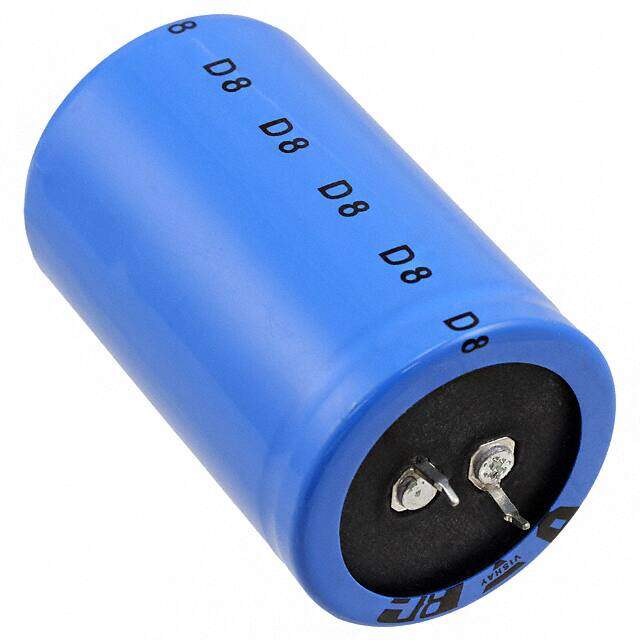

Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR 159PUL-SI 450V 180muF ±20% 0.984Dia 25.00mm
PDF
/
Inventory: 7309
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Series 159 PUL-SI
Size / Dimension 0.984Dia 25.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Voltage - Rated 450V
Capacitance 180μF
Terminal Pitch 10mm
Lead Pitch 10.0076mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 1Ohm @ 100Hz
Lead Spacing 0.394 10.00mm
Rated (DC) Voltage (URdc) 450V
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 0.81mA
Ripple Current 1.07A
Polarization Polar
Life (Hours) 5000 hours
Impedance 605mOhm
Ripple Current @ Low Frequency 1.07A @ 120Hz
Dimensions
Diameter 25mm
Height 45mm
Height Seated (Max) 1.850 47.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
