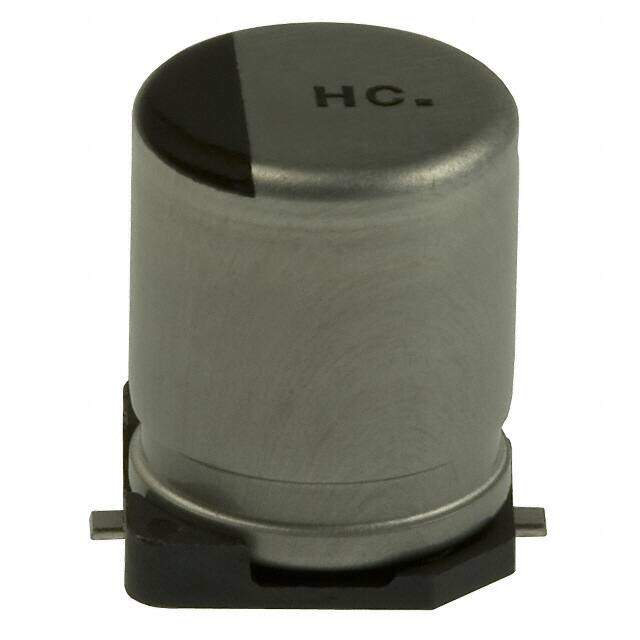

EEE-HC1H101P
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR HC 50V 100muF ±20% 0.394Dia 10.00mm
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.511921
≥1 USD $0.511921
≥10 USD $0.48294
≥100 USD $0.455604
≥500 USD $0.429812
≥1000 USD $0.405484
Inventory: 1252
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Dielectric Material ALUMINUM (WET)
Surface Mount Land Size 0.406Lx0.406W 10.30mmx10.30mm
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2008
Series HC
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
JESD-609 Code e3/e6
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish TIN/TIN BISMUTH
Applications Automotive
Voltage - Rated 50V
Capacitance 100μF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Rated (DC) Voltage (URdc) 50V
Size Code 4141
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 0.05mA
Polarization Polar
Tan Delta 0.12
Ripple Current @ Low Frequency 160mA @ 120Hz
Ripple Current @ High Frequency 272mA @ 10kHz
Dimensions
Height Seated (Max) 0.413 10.50mm
Length 12mm
Width 10.3mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
