EEE-HB1E221P
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR HB 25V 220muF ±20% 0.394Dia 10.00mm
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.452716
≥1 USD $0.452716
≥10 USD $0.427084
≥100 USD $0.40292
≥500 USD $0.380112
≥1000 USD $0.358593
Inventory: 1207
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Dielectric Material ALUMINUM (WET)
Surface Mount Land Size 0.406Lx0.406W 10.30mmx10.30mm
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2005
Series HB
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
JESD-609 Code e3/e6
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish TIN/TIN BISMUTH
Applications Automotive
Voltage - Rated 25V
Capacitance 220μF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Rated (DC) Voltage (URdc) 25V
Size Code 4141
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.055mA
Polarization Polar
Tan Delta 0.16
Ripple Current @ Low Frequency 190mA @ 120Hz
Ripple Current @ High Frequency 323mA @ 10kHz
Dimensions
Height Seated (Max) 0.413 10.50mm
Length 12mm
Width 10.3mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200

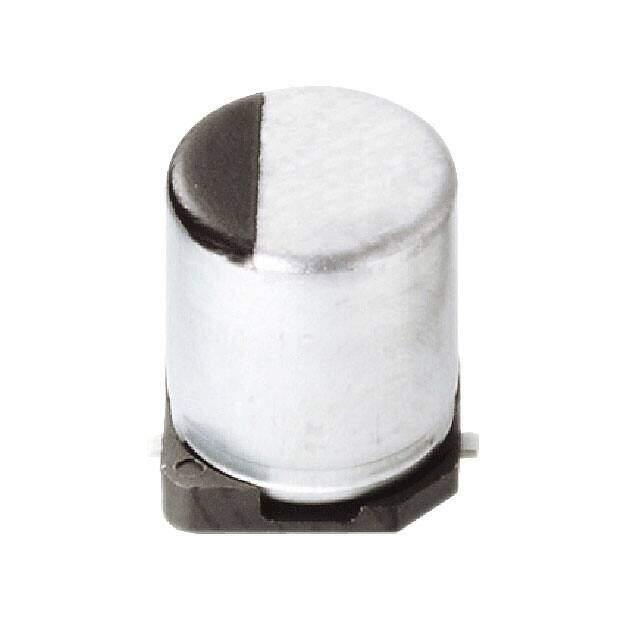

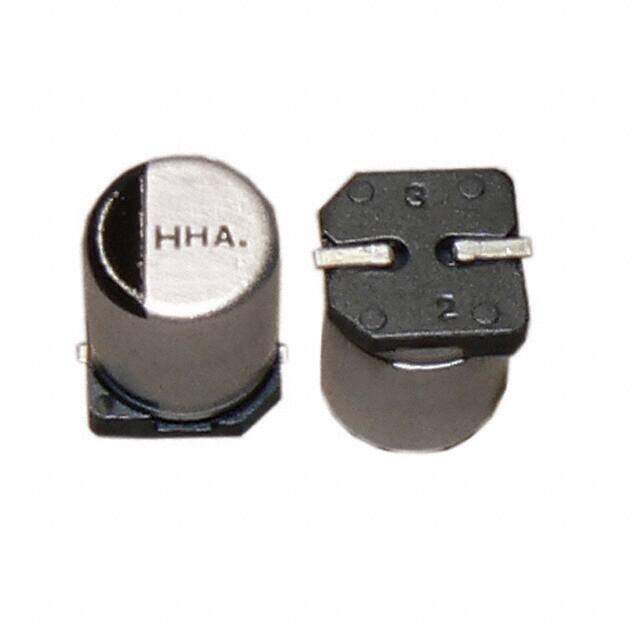

Alternative Model
