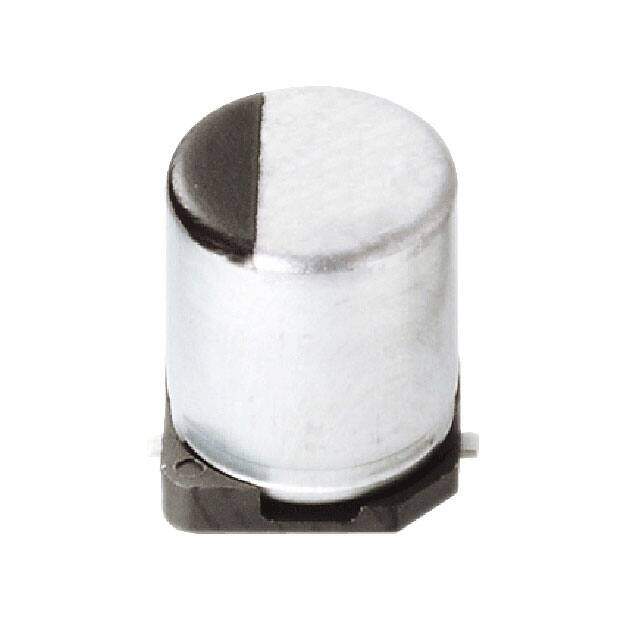

EEE-TC1E221P
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
CAP ALUM 220UF 20% 25V SMD
PDF
/
Buying Options
Total Price: USD $0.89
Unit Price: USD $0.8888
≥1 USD $0.8888
≥10 USD $0.6688
≥100 USD $0.60984
≥500 USD $0.499664
Inventory: 1187
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.413 10.50mm
Technical
Ripple Current @ Low Frequency 487.5mA @ 120Hz
Polarization Polar
Lifetime @ Temp 3000 Hrs @ 125°C
ESR (Equivalent Series Resistance) 150mOhm @ 100kHz
Capacitance 220μF
Voltage - Rated 25V
Applications Automotive, High Temperature Reflow
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.394Dia 10.00mm
Series TC
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Surface Mount Land Size 0.406Lx0.406W 10.30mmx10.30mm
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
