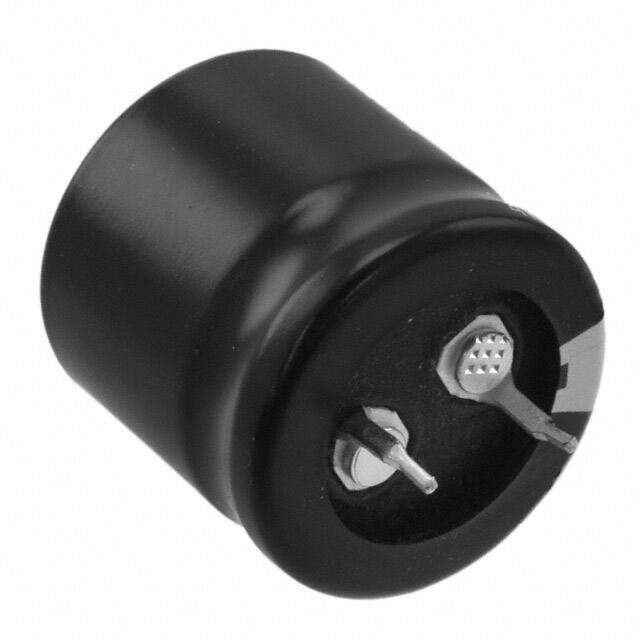

ECO-S2GP101CA
RoHS
/
Package Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR TS-UP 400V 100muF ±20% 0.984Dia 25.00mm
PDF
/
Inventory: 3682
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.984 25.00mm
Height 25mm
Diameter 25mm
Technical
Dissipation Factor 15 %
Ripple Current @ High Frequency 1.29A @ 100kHz
Ripple Current @ Low Frequency 920mA @ 120Hz
Tan Delta 0.15
Life (Hours) 3000 hours
Polarization Polar
Test Frequency 120Hz
Ripple Current 920mA
Leakage Current 0.6mA
Lifetime @ Temp 3000 Hrs @ 85°C
Lead Diameter 800 μm
Lead Spacing 0.394 10.00mm
ESR (Equivalent Series Resistance) 1.658Ohm @ 120Hz
Lead Length 6.3mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 10mm
Voltage - Rated DC 400V
Capacitance 100μF
Applications General Purpose
Terminal Finish Tin (Sn)
Resistance 1.658Ohm
ECCN Code EAR99
Termination Snap in
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature General Purpose
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.984Dia 25.00mm
Series TS-UP
Published 2005
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Dielectric Material ALUMINUM (WET)
Number of Pins 2
Package / Case Radial, Can - Snap-In
Mounting Type Through Hole
Mount Through Hole

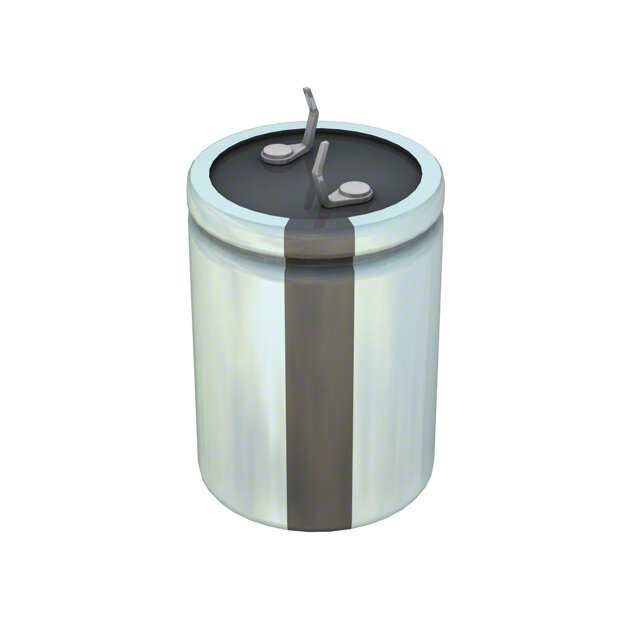

Alternative Model
