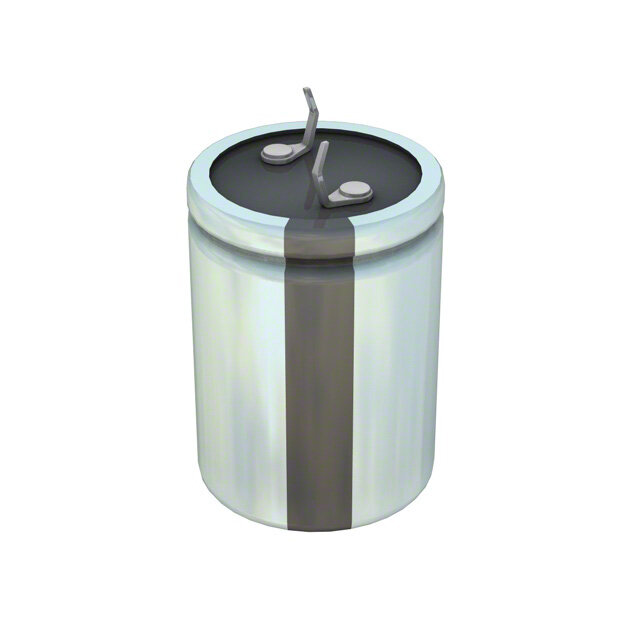

LPX101M400A3P3
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR LPX 400V 100muF ±20% 0.866Dia 22.00mm
PDF
/
Inventory: 3841
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 1.181 30.00mm
Height 30mm
Diameter 22mm
Technical
Dissipation Factor 25 %
Ripple Current @ High Frequency 840mA @ 50kHz
Ripple Current @ Low Frequency 700mA @ 120Hz
Life (Hours) 1000 hours
Polarization Polar
Test Frequency 120Hz
Ripple Current 700mA
Leakage Current 0.6mA
Lifetime @ Temp 1000 Hrs @ 85°C
Lead Spacing 0.394 10.00mm
ESR (Equivalent Series Resistance) 1.989Ohm @ 120Hz
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 10mm
Voltage - Rated DC 400V
Capacitance 100μF
Applications General Purpose
Terminal Finish TIN
ECCN Code EAR99
Termination Snap in
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.866Dia 22.00mm
Series LPX
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material Aluminium
Number of Pins 2
Package / Case Radial, Can - Snap-In
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 25 Weeks
