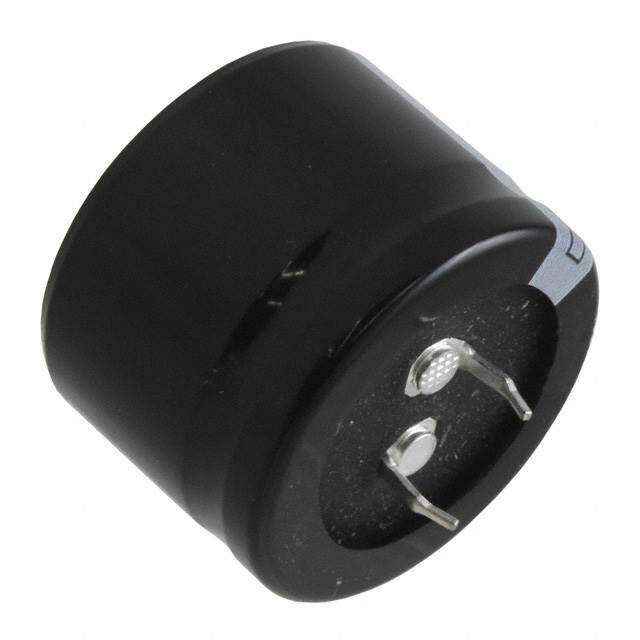

ECO-S1VA822EA
RoHS
/
Package Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR TS-HA 35V 8200muF ±20% 1.378Dia 35.00mm
PDF
/
Inventory: 8812
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Number of Pins 2
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2005
Series TS-HA
Size / Dimension 1.378Dia 35.00mm
Tolerance ±20%
JESD-609 Code e3
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Resistance 51mOhm
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 8200μF
Voltage - Rated DC 35V
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Length 6.3mm
ESR (Equivalent Series Resistance) 51mOhm @ 120Hz
Lead Spacing 0.394 10.00mm
Lead Diameter 800 μm
Lifetime @ Temp 3000 Hrs @ 105°C
Leakage Current 1.60717mA
Ripple Current 2.9A
Polarization Polar
Life (Hours) 3000 hours
Tan Delta 0.3
Ripple Current @ Low Frequency 2.9A @ 120Hz
Ripple Current @ High Frequency 3.335A @ 100kHz
Dimensions
Diameter 35mm
Height 25mm
Height Seated (Max) 1.063 27.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
