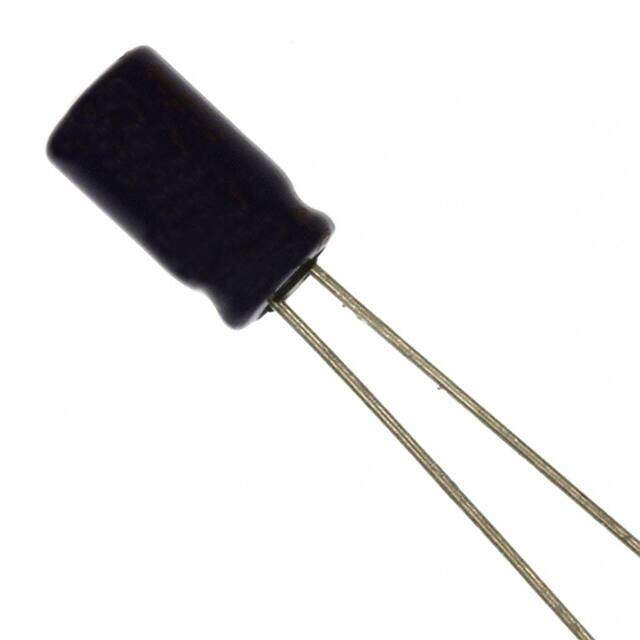

ECE-A1AN101XB
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR SU 10V 100muF ±20% 0.248Dia 6.30mm
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.26576
≥100 USD $0.211376
≥500 USD $0.174504
≥1000 USD $0.13633
≥3000 USD $0.115878
Inventory: 67133
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.480 12.20mm
Height 11.2mm
Diameter 6.3mm
Technical
Dissipation Factor 0.25 %
Ripple Current @ High Frequency 221mA @ 10kHz
Ripple Current @ Low Frequency 130mA @ 120Hz
Life (Hours) 2000 hours
Polarization Bi-Polar
Ripple Current 130mA
Leakage Current 3μA
Lifetime @ Temp 2000 Hrs @ 85°C
Lead Spacing 0.197 5.00mm
Polarity Bipolar
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 5mm
Voltage - Rated DC 10V
Capacitance 100μF
Applications General Purpose
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.248Dia 6.30mm
Series SU
Packaging Tape & Box (TB)
Operating Temperature -40°C~85°C
Physical
Dielectric Material ALUMINUM (WET)
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
