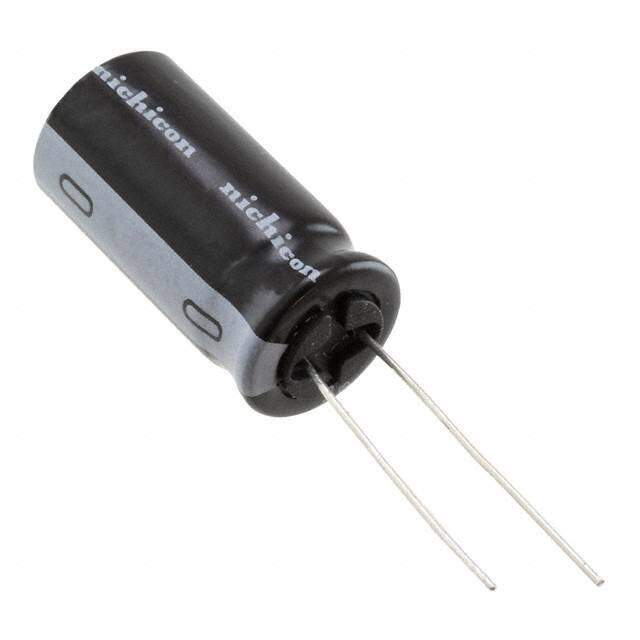

UVY2A331MHD1TO
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UVY 100V 330muF ±20% 0.492Dia 12.50mm
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2144
≥1 USD $1.2144
≥10 USD $0.91256
≥100 USD $0.832832
≥500 USD $0.682264
Inventory: 546
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Dielectric Material ALUMINUM
Technical
Operating Temperature -55°C~105°C
Packaging Cut Tape (CT)
Published 2015
Series UVY
Size / Dimension 0.492Dia 12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Applications General Purpose
Voltage - Rated 100V
HTS Code 8532.22.00
Capacitance 330μF
Terminal Pitch 5mm
Lead Pitch 5.0038mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Rated (DC) Voltage (URdc) 100V
Lifetime @ Temp 1000 Hrs @ 105°C
Ripple Current 540mA
Polarization Polar
Life (Hours) 1000 hours
Ripple Current @ Low Frequency 540mA @ 120Hz
Ripple Current @ High Frequency 810mA @ 10kHz
Dimensions
Diameter 12.5mm
Height Seated (Max) 1.063 27.00mm
Length 25mm
Compliance
RoHS Status ROHS3 Compliant

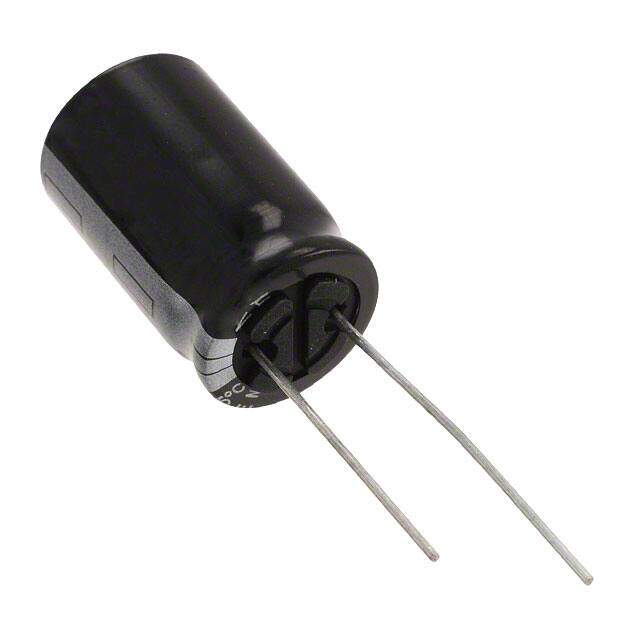

Alternative Model
