ECA-2AHG331B
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
NHG ALUMINUM ELECTROLYTIC CAPACITOR Radial Can aluminum electrolytic capacitor 0.630Dia 16.00mm ±20% 330muF 100V
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.54
≥1 USD $1.54
≥10 USD $1.1572
≥100 USD $1.056
≥500 USD $0.865128
Inventory: 595
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Box (TB)
Series NHG
Size / Dimension 0.630Dia 16.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 330μF
Voltage - Rated DC 100V
Packing Method AMMO PACK
Reference Standard AEC-Q200
Lead Pitch 7.5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.295 7.50mm
Lead Diameter 800 μm
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.33mA
Ripple Current 540mA
Polarization Polar
Life (Hours) 2000 hours
Tan Delta 0.08
Ripple Current @ Low Frequency 540mA @ 120Hz
Ripple Current @ High Frequency 810mA @ 100kHz
Lead/Base Style Straight
Dimensions
Diameter 16mm
Height 25mm
Height Seated (Max) 1.063 27.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant

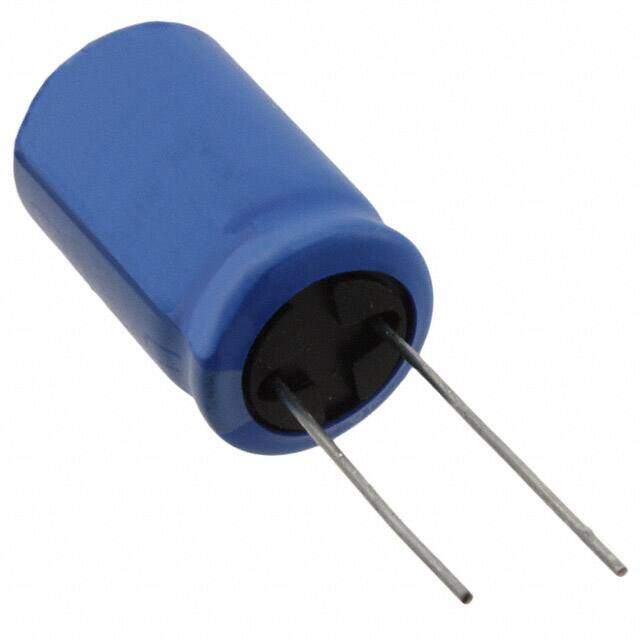

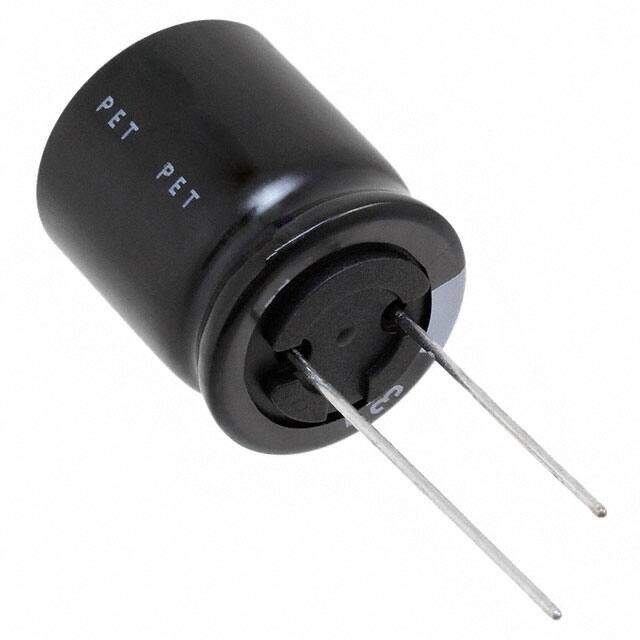

Alternative Model
