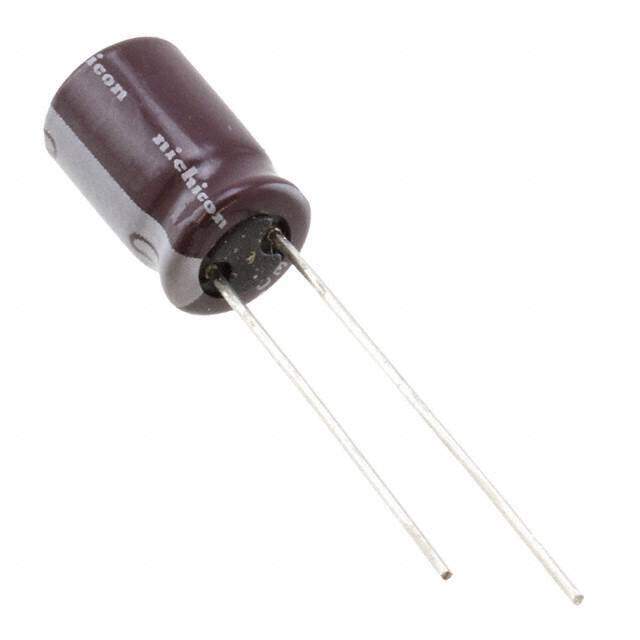

UPS1C331MPD1TD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UPS 16V 330muF ±20% 0.315Dia 8.00mm
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.35112
≥100 USD $0.279312
≥500 USD $0.230736
≥1000 USD $0.180242
Inventory: 13639
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -55°C~105°C
Packaging Cut Tape (CT)
Published 2015
Series UPS
Size / Dimension 0.315Dia 8.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code 8532.22.00
Capacitance 330μF
Voltage - Rated DC 16V
Packing Method AMMO PACK
Terminal Pitch 3.5mm
Lead Pitch 3.5052mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.138 3.50mm
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.1584mA
Ripple Current 410mA
Polarization Polar
Life (Hours) 2000 hours
Tan Delta 0.16
Impedance 280mOhm
Ripple Current @ Low Frequency 291.1mA @ 120Hz
Ripple Current @ High Frequency 410mA @ 100kHz
Dimensions
Diameter 8mm
Height Seated (Max) 0.512 13.00mm
Length 11.5mm
Compliance
RoHS Status ROHS3 Compliant
