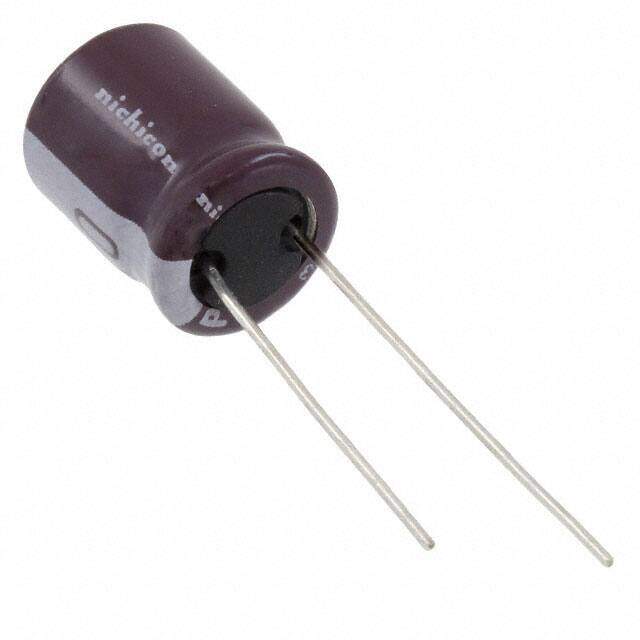

UPM1C331MPD6
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UPM 16V 330muF ±20% 0.394Dia 10.00mm
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
≥10 USD $0.4224
≥100 USD $0.35552
≥500 USD $0.28952
≥1000 USD $0.241296
≥3000 USD $0.190502
Inventory: 2535
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material Aluminium
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2009
Series UPM
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Capacitance 330μF
Voltage - Rated DC 16V
Lead Pitch 5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 158.4μA
Ripple Current 480mA
Polarization Polar
Life (Hours) 5000 hours
Impedance 120mOhm
Ripple Current @ Low Frequency 510mA @ 120Hz
Ripple Current @ High Frequency 670mA @ 10kHz
Dissipation Factor 0.16 %
Dimensions
Diameter 10mm
Height 12.5mm
Height Seated (Max) 0.571 14.50mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
