UPH2G680MHD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

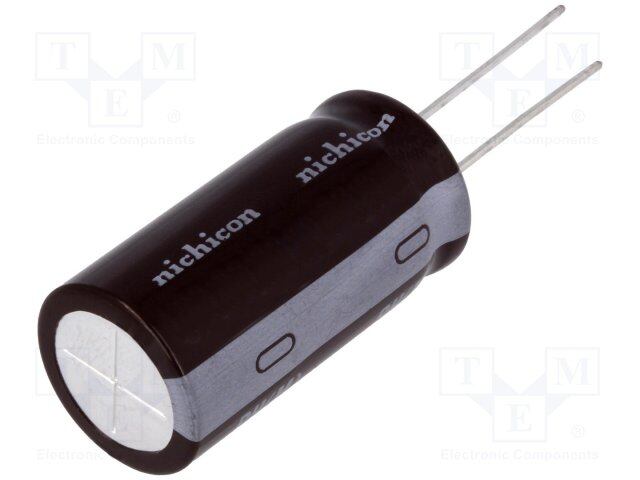

UPH ALUMINUM ELECTROLYTIC CAPACITOR Radial Can aluminum electrolytic capacitor 0.492Dia 12.50mm ±20% 68muF 400V
PDF
/
Inventory: 3611
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2009
Series UPH
Size / Dimension 0.492Dia 12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Applications General Purpose
HTS Code 8532.22.00
Capacitance 68μF
Voltage - Rated DC 400V
Lead Pitch 5.0038mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Lead Diameter 800 μm
Voltage 400V
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 1.188A
Ripple Current 540mA
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 540mA @ 120Hz
Ripple Current @ High Frequency 810mA @ 10kHz
Lead/Base Style Straight
Dimensions
Diameter 12.5mm
Height 33.5mm
Height Seated (Max) 1.398 35.50mm
Compliance
RoHS Status ROHS3 Compliant
