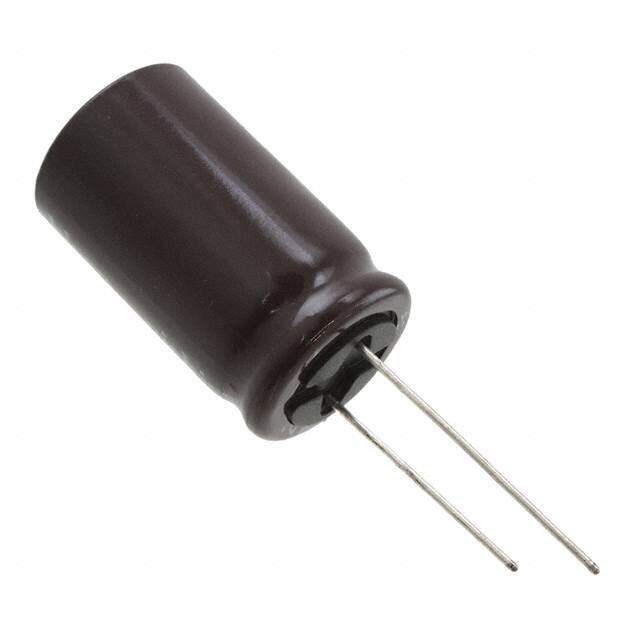

UCA2G680MHD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UCA 400V 68muF ±20% 0.709Dia 18.00mm
PDF
/
Buying Options
Total Price: USD $2.57
Unit Price: USD $2.573127
≥1 USD $2.573127
≥10 USD $2.427482
≥100 USD $2.290075
≥500 USD $2.160444
≥1000 USD $2.038158
Inventory: 1137
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2009
Series UCA
Size / Dimension 0.709Dia 18.00mm
Tolerance ±20%
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
HTS Code 8532.22.00
Capacitance 68μF
Voltage - Rated DC 400V
Lead Pitch 7.5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.295 7.50mm
Lead Diameter 800 μm
Voltage 400V
Lifetime @ Temp 12000 Hrs @ 105°C
Leakage Current 1.188mA
Ripple Current 1A
Polarization Polar
Life (Hours) 12000 hours
Tan Delta 0.2
Ripple Current @ Low Frequency 500mA @ 120Hz
Ripple Current @ High Frequency 1A @ 100kHz
Dissipation Factor 0.2 %
Lead/Base Style Straight
Dimensions
Diameter 18mm
Height 31.5mm
Height Seated (Max) 1.299 33.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant

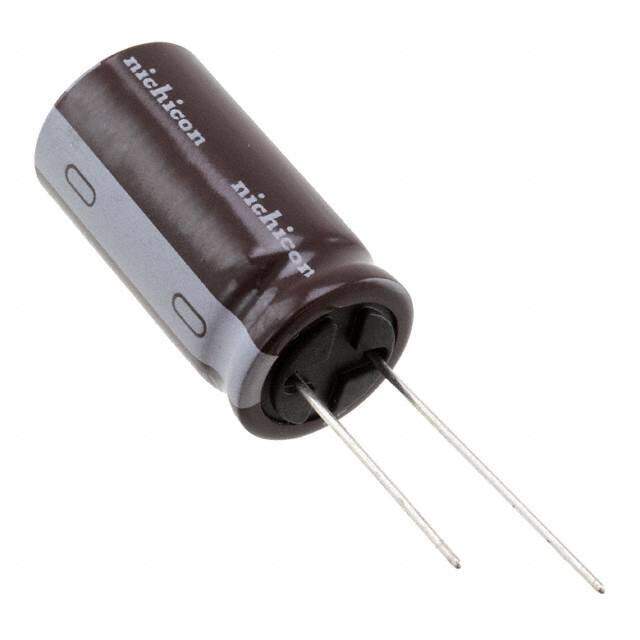

Alternative Model
