UKT1C331MPD1TA
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

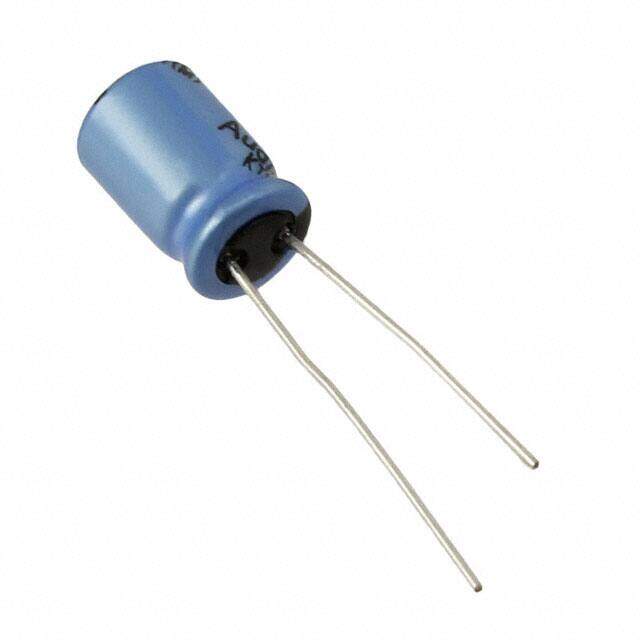

UKT ALUMINUM ELECTROLYTIC CAPACITOR Radial Can aluminum electrolytic capacitor 0.315Dia 8.00mm ±20% 330muF 16V
PDF
/
Inventory: 5332
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Dielectric Material ALUMINUM
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Box (TB)
Published 2015
Series UKT
Size / Dimension 0.315Dia 8.00mm
Tolerance ±20%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications Audio
Voltage - Rated 16V
HTS Code 8532.22.00
Capacitance 330μF
Terminal Pitch 3.5mm
Lead Pitch 3.5052mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.138 3.50mm
Rated (DC) Voltage (URdc) 16V
Lifetime @ Temp 1000 Hrs @ 105°C
Ripple Current 265mA
Polarization Polar
Life (Hours) 1000 hours
Ripple Current @ Low Frequency 265mA @ 120Hz
Ripple Current @ High Frequency 397.5mA @ 10kHz
Dimensions
Diameter 8mm
Height Seated (Max) 0.512 13.00mm
Length 11.5mm
Compliance
RoHS Status ROHS3 Compliant
