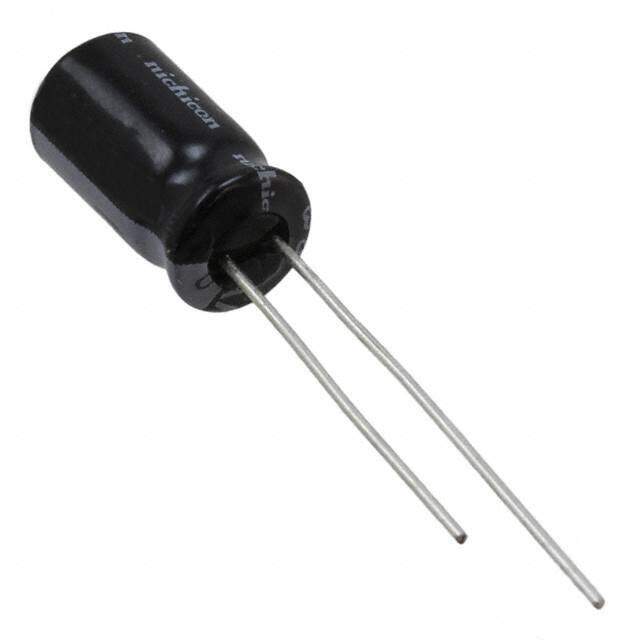

UVY1C331MED1TD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UVY 16V 330muF ±20% 0.248Dia 6.30mm
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.4224
≥1 USD $0.4224
≥10 USD $0.27808
≥100 USD $0.20504
≥500 USD $0.166936
≥1000 USD $0.131789
≥3000 USD $0.111285
Inventory: 13610
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Number of Pins 2
Dielectric Material Aluminium
Technical
Operating Temperature -55°C~105°C
Packaging Cut Tape (CT)
Published 2009
Series UVY
Size / Dimension 0.248Dia 6.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Applications General Purpose
Capacitance 330μF
Voltage - Rated DC 16V
Lead Pitch 2.4892mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.098 2.50mm
Lifetime @ Temp 1000 Hrs @ 105°C
Ripple Current 225mA
Polarization Polar
Life (Hours) 1000 hours
Ripple Current @ Low Frequency 225mA @ 120Hz
Ripple Current @ High Frequency 337.5mA @ 10kHz
Dimensions
Diameter 6.3mm
Height 11mm
Height Seated (Max) 0.492 12.50mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
