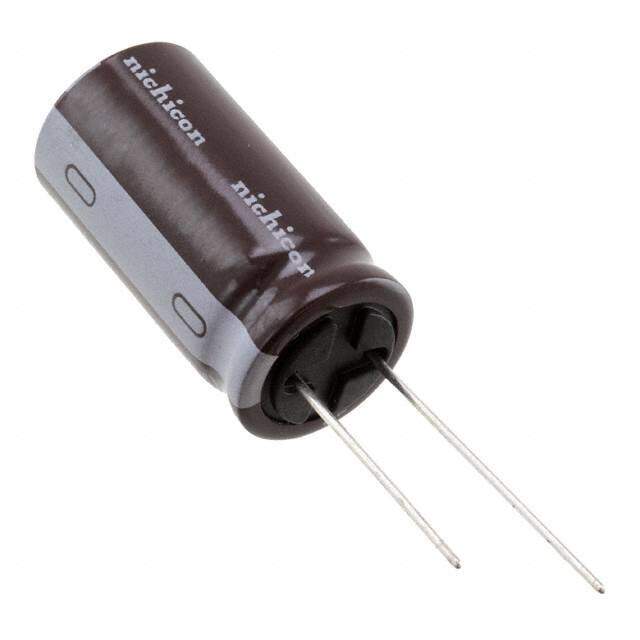

UPT2G680MHD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UPT 400V 68muF ±20% 0.630Dia 16.00mm
PDF
/
Buying Options
Total Price: USD $2.57
Unit Price: USD $2.5696
≥1 USD $2.5696
≥10 USD $1.97648
≥100 USD $1.815792
≥500 USD $1.361774
≥1000 USD $1.210466
≥3000 USD $1.059168
Inventory: 354
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2012
Series UPT
Size / Dimension 0.630Dia 16.00mm
Tolerance ±20%
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
HTS Code 8532.22.00
Capacitance 68μF
Voltage - Rated DC 400V
Lead Pitch 7.5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.295 7.50mm
Lead Diameter 800 μm
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 1.642mA
Ripple Current 460mA
Polarization Polar
Life (Hours) 5000 hours
Tan Delta 0.15
Ripple Current @ Low Frequency 460mA @ 120Hz
Dimensions
Diameter 16mm
Height 31.5mm
Height Seated (Max) 1.299 33.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
