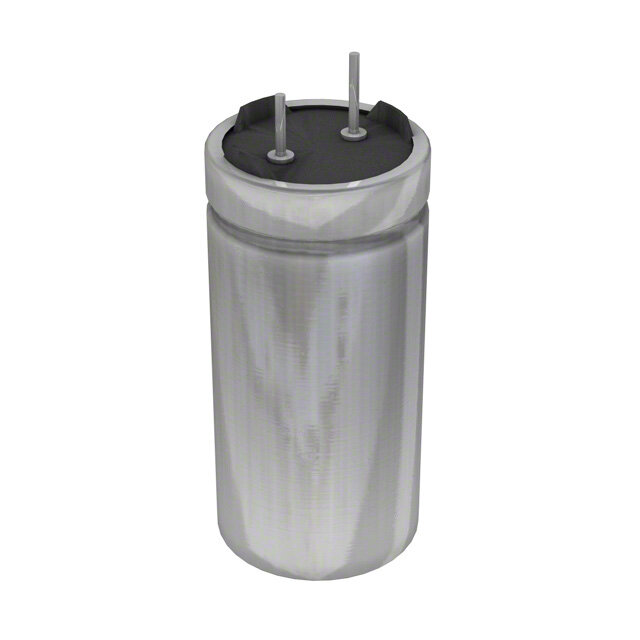

VPR282U025N2C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR VPR 25V 2800muF -10% +75% 1.000Dia 25.40mm
PDF
/
Buying Options
Total Price: USD $14.33
Unit Price: USD $14.327678
≥1 USD $14.327678
≥200 USD $5.54569
≥500 USD $5.350068
≥1000 USD $5.254226
Inventory: 9560
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material Aluminium
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2013
Series VPR
Size / Dimension 1.000Dia 25.40mm
Tolerance -10% +75%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Capacitance 2800μF
Voltage - Rated DC 25V
Lead Pitch 10.2108mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 23mOhm @ 10kHz
Lead Spacing 0.402 10.20mm
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.14mA
Ripple Current 4.107A
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ High Frequency 4.107A @ 10kHz
Custom Capabilities Other Tolerances Available
Dimensions
Diameter 25.4mm
Height 54mm
Height Seated (Max) 2.126 54.00mm
Length 53.9mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant

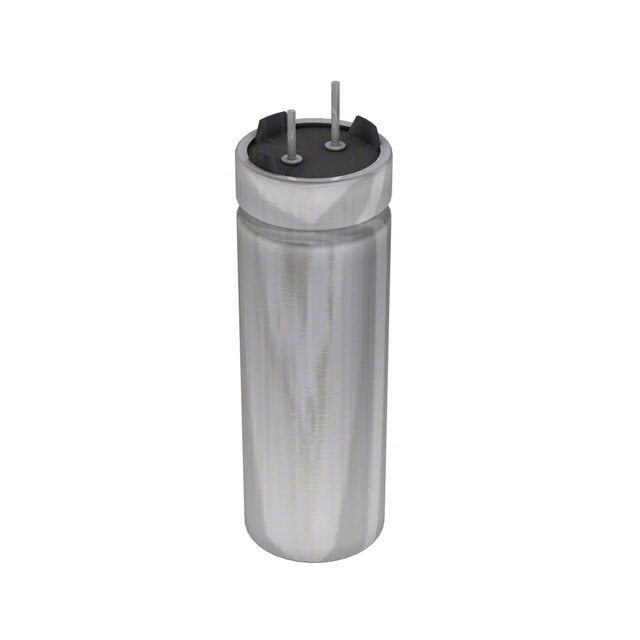

Alternative Model
