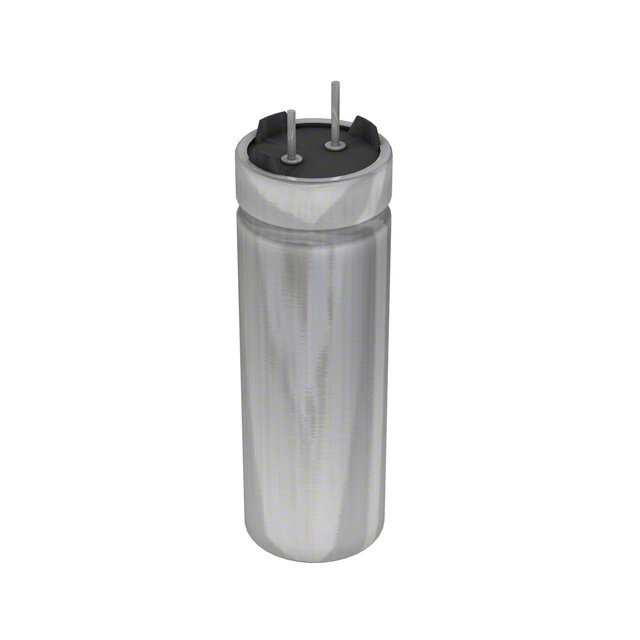

VPR282U025L2L
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR VPR 25V 2800muF -10% +75% 0.874Dia 22.20mm
PDF
/
Buying Options
Total Price: USD $16.37
Unit Price: USD $16.365299
≥1 USD $16.365299
≥200 USD $6.33343
≥500 USD $6.110237
≥1000 USD $6.001266
Inventory: 8690
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material Aluminium
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2013
Series VPR
Size / Dimension 0.874Dia 22.20mm
Tolerance -10% +75%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Capacitance 2800μF
Voltage - Rated DC 25V
Lead Pitch 7.62mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 18mOhm @ 10kHz
Lead Spacing 0.299 7.60mm
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.14mA
Ripple Current 4.732A
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ High Frequency 4.732A @ 10kHz
Custom Capabilities Other Tolerances Available
Dimensions
Diameter 22.23mm
Height 66.7mm
Height Seated (Max) 2.626 66.70mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
