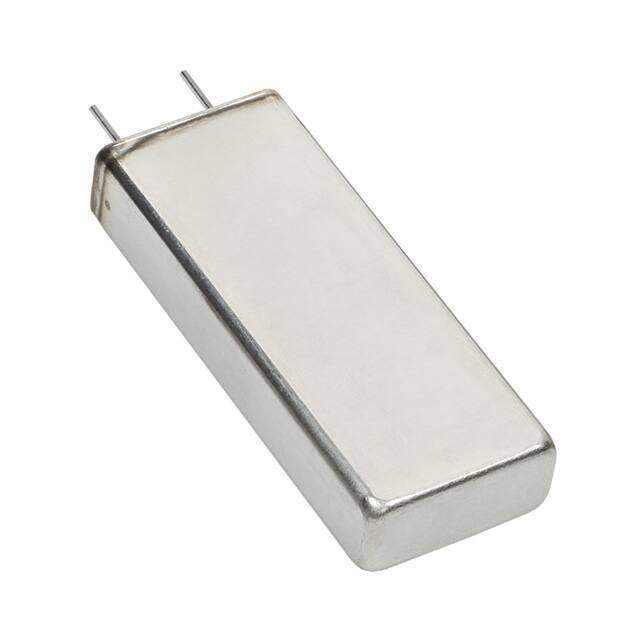

THA281M200AC0C
RoHS
RoHS compliant
RoHS compliantPackage FlatPack
Category Capacitors / Aluminum Electrolytic Capacitors
Description
CAP ALUM 280UF 20% 200V T/H
PDF
/
Buying Options
Total Price: USD $14.29
Unit Price: USD $14.286978
≥1 USD $14.286978
≥200 USD $5.528622
≥500 USD $5.334313
≥1000 USD $5.238471
Inventory: 2943
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Through Hole
Package / Case FlatPack
Technical
Operating Temperature -55°C~85°C
Packaging Bulk
Series THA
Size / Dimension 2.118Lx0.953W 53.80mmx24.20mm
Tolerance ±20%
Part Status Active
Applications General Purpose
Voltage - Rated 200V
Capacitance 280μF
ESR (Equivalent Series Resistance) 530mOhm @ 120Hz
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 3000 Hrs @ 85°C
Polarization Polar
Ripple Current @ Low Frequency 900mA @ 120Hz
Ripple Current @ High Frequency 1.53A @ 20kHz
Dimensions
Height Seated (Max) 0.335 8.50mm
Compliance
RoHS Status ROHS3 Compliant
