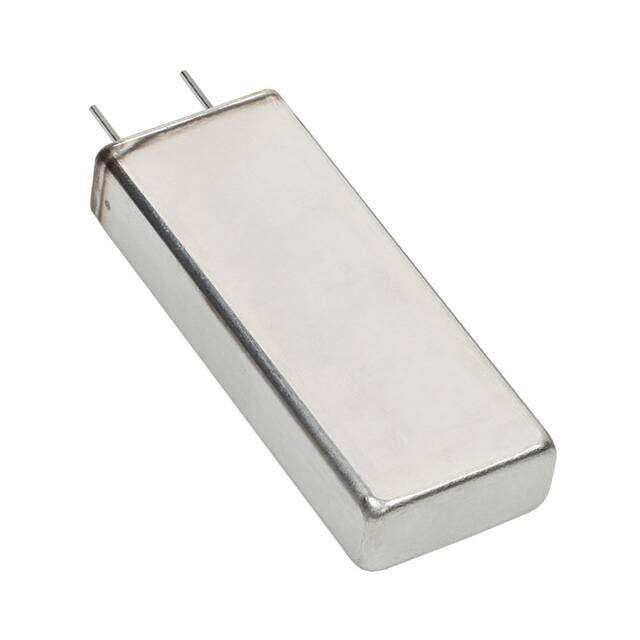

MLSG281M200JA0C
RoHS
/
Package FlatPack
Category Capacitors / Aluminum Electrolytic Capacitors
Description
CAP ALUM 280UF 20% 200V FLATPACK
PDF
/
Buying Options
Total Price: USD $163.27
Unit Price: USD $163.266992
≥1 USD $163.266992
≥200 USD $63.182
≥500 USD $60.961886
≥1000 USD $59.864301
Inventory: 8521
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.500 12.70mm
Technical
Ripple Current @ High Frequency 3.1A @ 20kHz
Ripple Current @ Low Frequency 2.8A @ 120Hz
Polarization Bi-Polar
Lifetime @ Temp 5000 Hrs @ 125°C
Lead Spacing 0.500 12.70mm
ESR (Equivalent Series Resistance) 845mOhm @ 120Hz
Capacitance 280μF
Voltage - Rated 200V
Applications General Purpose
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Tolerance ±20%
Size / Dimension 2.000Lx1.000W 50.80mmx25.40mm
Series MLSG Slimpack
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Package / Case FlatPack
Mounting Type Through Hole
Supply Chain
Factory Lead Time 28 Weeks
