35MXG6800MEFCSN22X40
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description

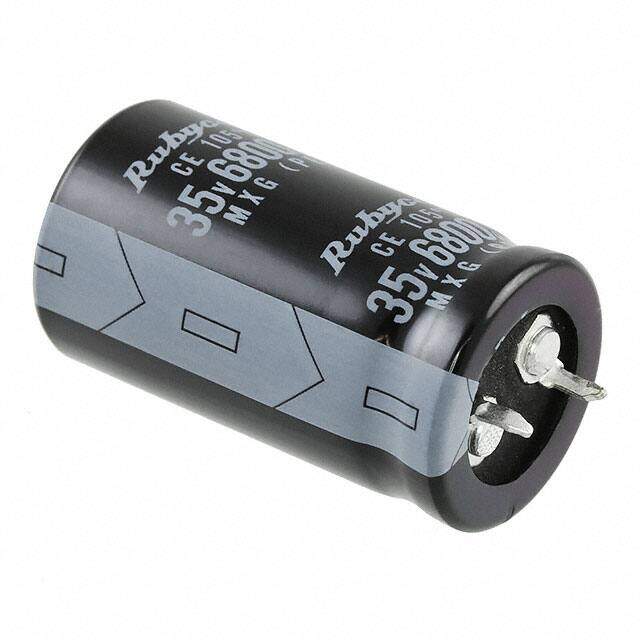

Radial Can - Snap-In MXG 35V 6800muF ±20% 0.866Dia 22.00mm
PDF
/
Buying Options
Total Price: USD $2.48
Unit Price: USD $2.4816
≥1 USD $2.4816
≥10 USD $1.6764
≥100 USD $1.350448
≥500 USD $1.345168
Inventory: 403
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 1.654 42.00mm
Technical
Ripple Current @ High Frequency 2.7715A @ 10kHz
Ripple Current @ Low Frequency 2.41A @ 120Hz
Life (Hours) 3000 hours
Polarization Polar
Ripple Current 2.41A
Lifetime @ Temp 3000 Hrs @ 105°C
Lead Spacing 0.394 10.00mm
Lead Pitch 10.0076mm
Reach Compliance Code unknown
Capacitance 6800μF
Voltage - Rated 35V
Applications General Purpose
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.866Dia 22.00mm
Series MXG
Published 2015
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Package / Case Radial, Can - Snap-In
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks
