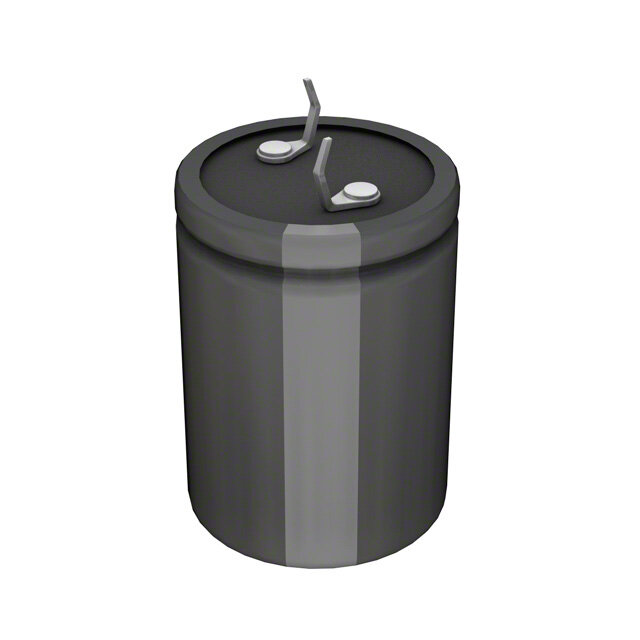

LPW102M2AN30V-W
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR LPW 100V 1000muF ±20% 0.866Dia 22.00mm
PDF
/
Buying Options
Total Price: USD $7.62
Unit Price: USD $7.618759
≥1 USD $7.618759
≥200 USD $3.040676
≥500 USD $2.93827
≥1000 USD $2.88838
Inventory: 8268
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Number of Pins 2
Dielectric Material Aluminium
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series LPW
Size / Dimension 0.866Dia 22.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 1000μF
Voltage - Rated DC 100V
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 332mOhm @ 120Hz
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 1000 Hrs @ 85°C
Leakage Current 3mA
Ripple Current 1.71A
Polarization Polar
Life (Hours) 1000 hours
Tan Delta 0.15
Ripple Current @ Low Frequency 1.71A @ 120Hz
Ripple Current @ High Frequency 2.052A @ 100kHz
Dimensions
Diameter 22mm
Height 30mm
Height Seated (Max) 1.181 30.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
