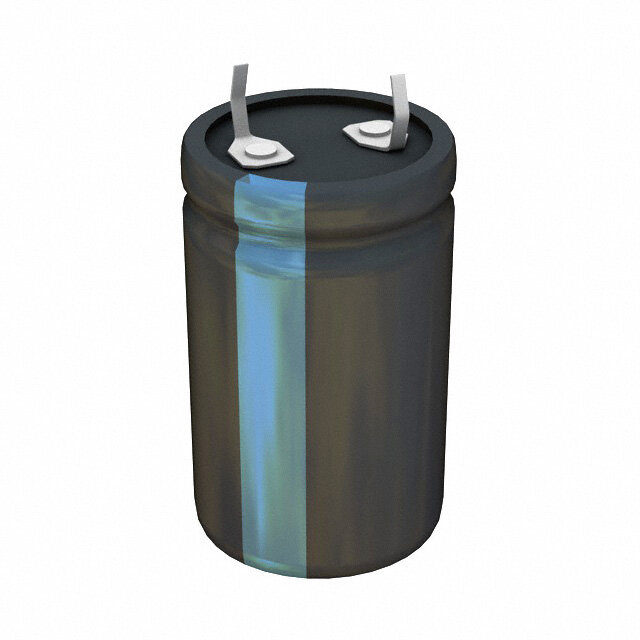

381LX102M100H032
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR 381LX 100V 1000muF ±20% 0.866Dia 22.00mm
PDF
/
Inventory: 3630
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Weight 21.999995g
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2016
Series 381LX
Size / Dimension 0.866Dia 22.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 1000μF
Voltage - Rated DC 100V
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 182mOhm
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 3000 Hrs @ 105°C
Leakage Current 0.94868mA
Ripple Current 1.7A
Polarization Polar
Life (Hours) 3000 hours
Ripple Current @ Low Frequency 1.7A @ 120Hz
Ripple Current @ High Frequency 2.55A @ 20kHz
Dimensions
Diameter 22mm
Height 35mm
Height Seated (Max) 1.457 37.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
