CPE-253
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Alarms, Buzzers, and Sirens
Description

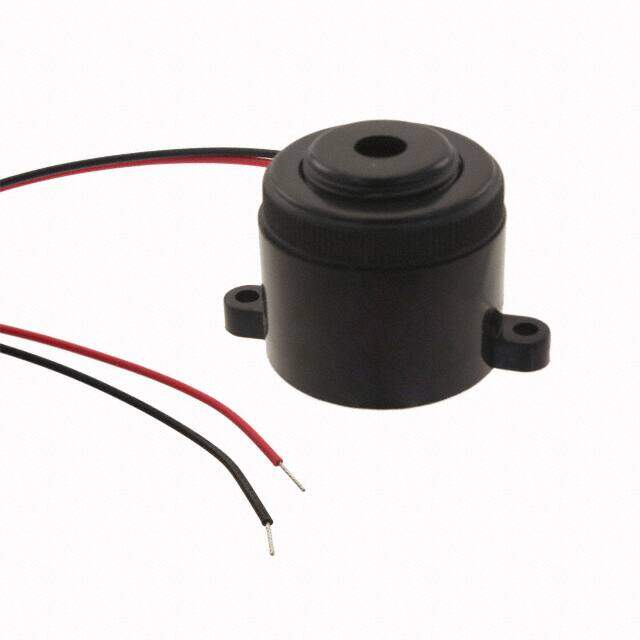

32 mm, 8~18 V, 87 dB, 3.5 kHz, Panel Mount w/Wire Leads, Driving Circuit, Piezo Audio Indicator Buzzer
PDF
/
Buying Options
Total Price: USD $3.74
Unit Price: USD $3.74
≥1 USD $3.74
≥10 USD $3.08352
≥100 USD $2.8424
≥500 USD $2.667808
≥1000 USD $2.499904
≥3000 USD $2.349882
Inventory: 52
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 1.020 25.90mm
Height 25.9mm
Technical
Driver Circuitry Indicator, Internally Driven
Sound Pressure Level (SPL) 87dB @ 12V, 30cm
Port Location Top
Washable No
Voltage Range 4V~28V
Current - Supply 6mA
Input Type DC
Operating Mode Pulse, Slow
Operating Supply Current 6mA
Frequency 3.5kHz
Technology Piezo
Voltage - Rated 12V
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.102Dia 28.00mm
Series CPE
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Mounting Type Panel Mount, Flange
Mount Chassis Mount
Supply Chain
Factory Lead Time 14 Weeks
