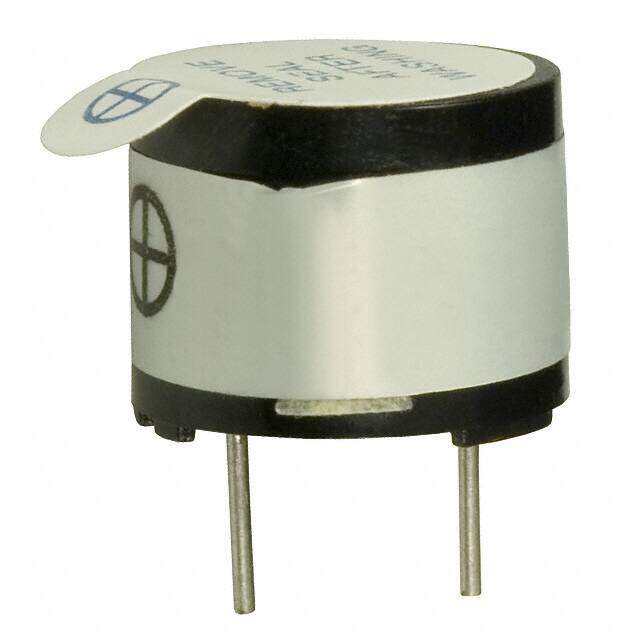

CEM-1201S
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Audio Products / Alarms, Buzzers, and Sirens
Description
AUDIO MAGNETIC XDCR 1-3V TH
PDF
/
Buying Options
Total Price: USD $1.42
Unit Price: USD $1.418691
≥1 USD $1.418691
≥10 USD $1.338384
≥100 USD $1.262627
≥500 USD $1.191158
≥1000 USD $1.123731
Inventory: 1231
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Technical
Operating Temperature -20°C~60°C
Packaging Tray
Published 2011
Series CEM
Size / Dimension 0.472Dia 12.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature 60°C
Min Operating Temperature -20°C
Voltage - Rated 1.5V
Technology Magnetic
Frequency 2.4kHz
Operating Supply Current 40mA
Operating Mode Single Tone
Input Type Zero-Peak Signal
Current - Supply 40mA
Voltage Range 1V~3V
Sensing Method Magnetic
Self Resonant Frequency 2.4kHz
Washable Yes
Port Location Top
Sound Pressure Level (SPL) 80dB @ 1.5V, 10cm
Driver Circuitry Transducer, Externally Driven
Dimensions
Diameter 12mm
Height 10mm
Height Seated (Max) 0.394 10.00mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Washable
