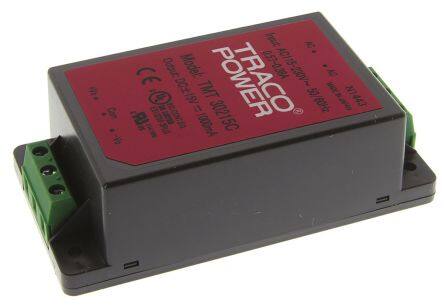

TMT 30215C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER +/-15V 30W
PDF
/
Inventory: 3148
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Total Power Output-Max 30W
Voltage - Output 2 -15V
Voltage - Input 85V~264VAC 85V~370VDC
Current - Output (Max) 1A 1A
Trim/Adjustable Output NO
Input Voltage-Nom 115V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Isolation 4kV
Efficiency 83%
Approval Agency CB, CE, cULus, cURus
Number of Outputs 2
JESD-30 Code R-PDMA-X6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Power (Watts) 30W
Applications Industrial, ITE (Commercial), Medical
Type Enclosed
ECCN Code EAR99
Number of Terminations 6
Part Status Not For New Designs
Feature Universal Input
Size / Dimension 3.78Lx2.01W x 1.16 H 96.0mmx51.0mmx29.5mm
Series TMT (30W)
Published 2007
Operating Temperature -25°C~50°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
