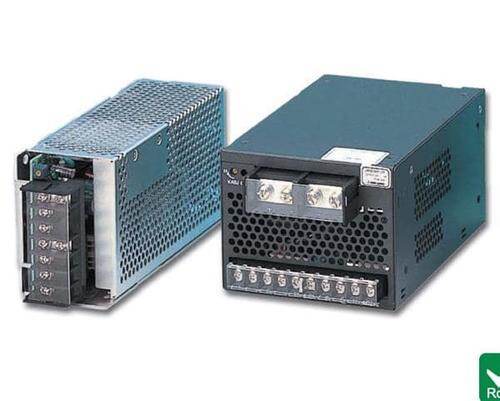

JWS505/C image
Favorite
JWS505/C image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description Switching Power Supplies 5V 10A
PDF
/
Inventory: 4333
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mounting Type Chassis Mount
Number of Pins 5

Technical

Operating Temperature -10°C~60°C With Derating
Published 2012
Series JWS (50W)
Size / Dimension 6.25Lx3.35W x 1.45 H 158.8mmx85.1mmx36.8mm
Feature Adjustable Output, DC Input Capable, PFC, Universal Input
Part Status Obsolete
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 50W
Subcategory Power Supply Modules
Number of Outputs 1
Approval Agency CE
Efficiency 74%
Voltage - Isolation 3kV
Output Voltage 5V
Max Output Current 10A
Voltage - Input 85V~265VAC
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Current - Output 1 10A
Ripple Voltage (Main Out) 0.04242Vrms

Dimensions

Height 7.874mm

Compliance

RoHS Status RoHS Compliant
