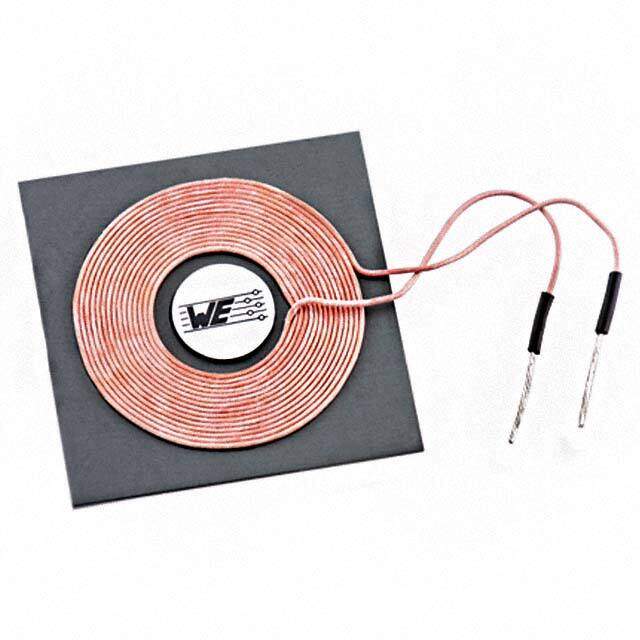

760308201 image
Favorite
760308201 image
Favorite
RoHS
RoHS RoHS compliant
Package 3737
Category Inductors, Coils, Chokes / Wireless Charging Coils
Description RX 1 COIL 1 LAYER 10UH 4.5A
PDF
/
Buying Options
Total Price: USD $9.54
Unit Price: USD $9.54
≥1 USD $9.54
≥10 USD $9
Inventory: 11
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Inductance Tolerance 5%
Q Factor 50
Current - Saturation 8A
Q @ Freq 50 @ 125kHz
Frequency - Self Resonant 15MHz
DC Resistance (DCR) 200mOhm Max
Inductance 10μH
Function Receiver
Current Rating (Amps) 3.5A
Type 1 Coil, 1 Layer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 1.46Lx1.46W x 0.07 H 37.0mmx37.0mmx1.8mm
Series WE-WPCC
Operating Temperature -20°C~105°C

Physical

Number of Pins 2
Package / Case 3737

Supply Chain

Factory Lead Time 17 Weeks
