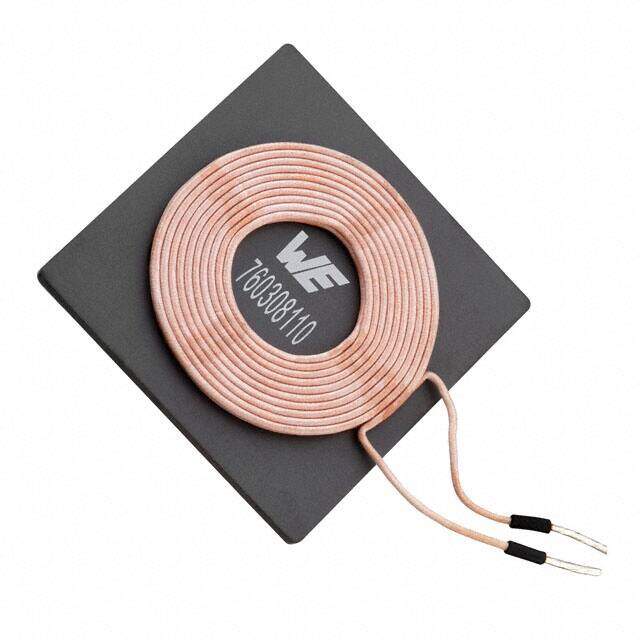

760308110
RoHS
RoHS compliant
RoHS compliantPackage /
Category Inductors, Coils, Chokes / Wireless Charging Coils
Description
TX 1 COIL 2 LAYER 24UH 6A
PDF
/
Buying Options
Total Price: USD $25.41
Unit Price: USD $25.408554
≥1 USD $25.408554
≥196 USD $10.138214
≥504 USD $9.799486
≥994 USD $9.632747
Inventory: 1111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Number of Pins 2
Technical
Operating Temperature -20°C~105°C
Series WE-WPCC
Size / Dimension 2.10Lx2.10W x 0.24 H 53.3mmx53.3mmx6.0mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type 1 Coil, 2 Layer
Current Rating (Amps) 6A
Function Transmitter
Inductance 24μH
DC Resistance (DCR) 100mOhm Max
Frequency - Self Resonant 5MHz
Q @ Freq 180 @ 125kHz
Current - Saturation 10A
Q Factor 180
Inductance Tolerance 10%
Compliance
RoHS Status ROHS3 Compliant
