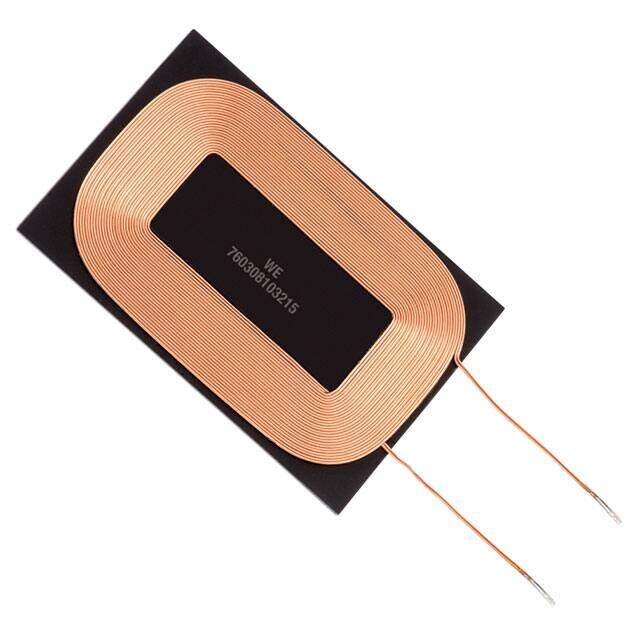

760308103215
RoHS
RoHS compliant
RoHS compliantPackage /
Category Inductors, Coils, Chokes / Wireless Charging Coils
Description
RX 1 COIL 1 LAYER 14.3UH 3A
PDF
/
Buying Options
Total Price: USD $14.17
Unit Price: USD $14.171443
≥1 USD $14.171443
≥192 USD $5.65466
≥480 USD $5.465603
≥1008 USD $5.372387
Inventory: 3395
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 42 Weeks
Technical
Operating Temperature -20°C~105°C
Series WE-WPCC
Size / Dimension 1.89Lx1.26W x 0.04 H 48.0mmx32mmx1mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type 1 Coil, 1 Layer
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Current Rating (Amps) 3A
Current Rating 3A
Function Receiver
Inductance 14.3μH
DC Resistance (DCR) 190mOhm Max
Frequency - Self Resonant 8.8MHz
Q @ Freq 40 @ 125kHz
Logic Function Receiver
Current - Saturation 8A
Inductance Tolerance 10%
Dimensions
Height 1.016mm
Length 48.006mm
Width 32.004mm
Compliance
RoHS Status ROHS3 Compliant
