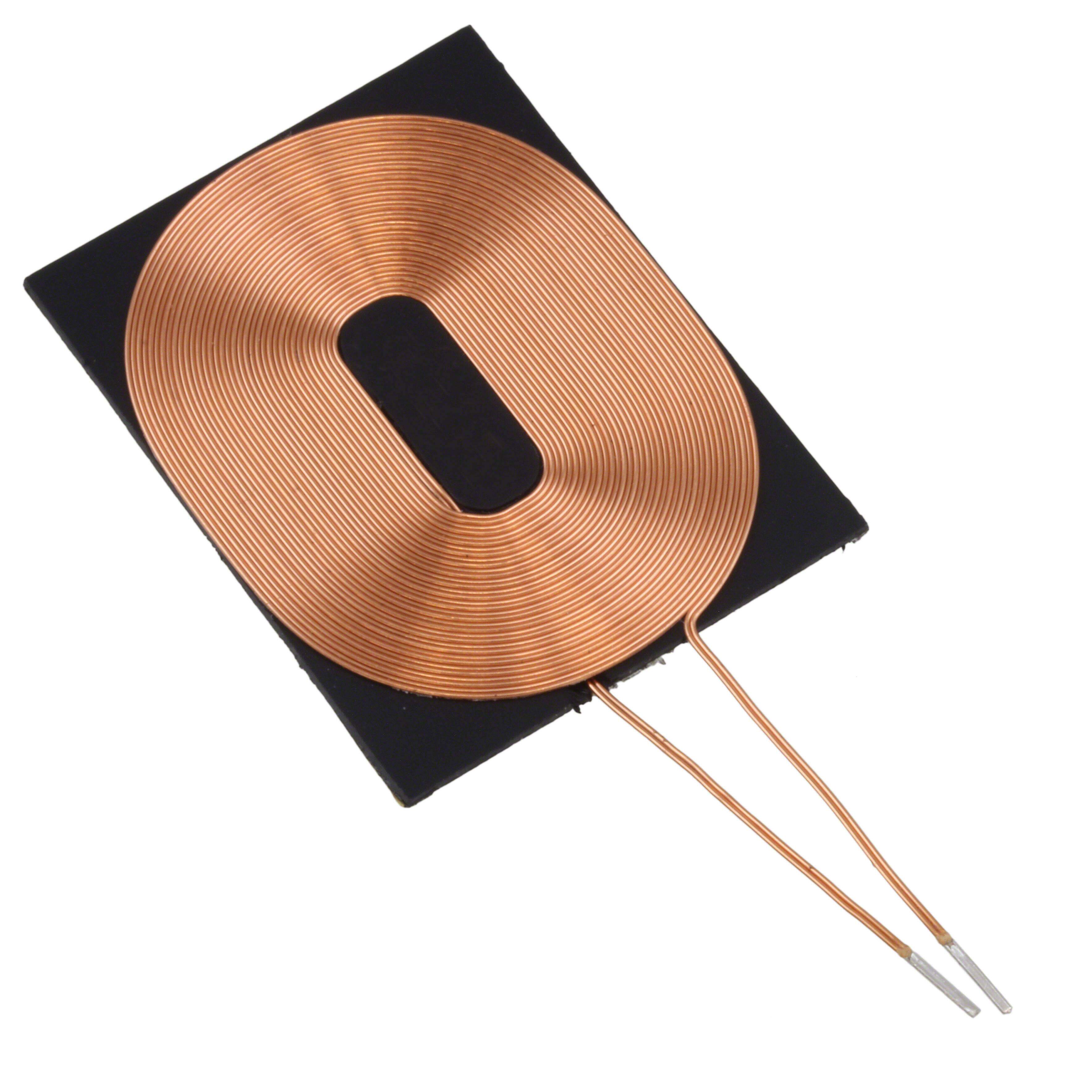

760308103205
RoHS
RoHS compliant
RoHS compliantPackage /
Category Inductors, Coils, Chokes / Wireless Charging Coils
Description
RX 1 COIL 1 LYR BIFILAR 11UH
PDF
/
Buying Options
Total Price: USD $11.6
Unit Price: USD $11.60341
≥1 USD $11.60341
≥192 USD $4.630598
≥480 USD $4.475676
≥960 USD $4.399528
Inventory: 1116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 42 Weeks
Technical
Operating Temperature -20°C~105°C
Series WE-WPCC
Size / Dimension 1.34Lx1.04W x 0.04 H 34.0mmx26.5mmx0.9mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type 1 Coil, 1 Layer, Bifilar
Resistance 200mOhm
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Current Rating (Amps) 2.5A
Current Rating 2.5A
Function Receiver
Inductance 11μH
DC Resistance (DCR) 180mOhm
Frequency - Self Resonant 16MHz
Q @ Freq 30 @ 125kHz
Logic Function Receiver
Current - Saturation 4A
Q Factor 30
Inductance Tolerance 10%
Dimensions
Height 1.016mm
Length 34.036mm
Width 26.416mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
