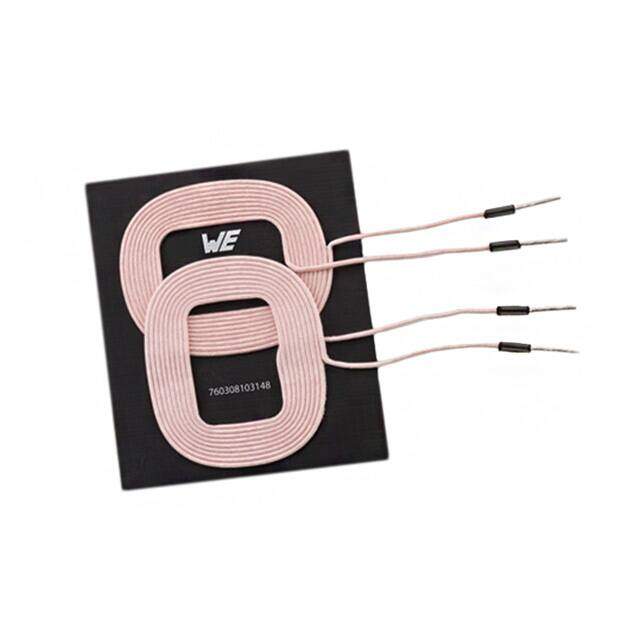

760308103148
RoHS
RoHS compliant
RoHS compliantPackage /
Category Inductors, Coils, Chokes / Wireless Charging Coils
Description
WE-WPCC WIRELESS POWER CHARGING
PDF
/
Buying Options
Total Price: USD $37.81
Unit Price: USD $37.814146
≥1 USD $37.814146
≥198 USD $15.087847
≥498 USD $14.583693
≥1002 USD $14.335555
Inventory: 9153
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 56 Weeks
Technical
Operating Temperature -20°C~105°C
Series WE-WPCC
Size / Dimension 2.80Lx2.40W x 0.16 H 71.0mmx61.0mmx4.0mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type 2 Coil, 1 Layer
Current Rating (Amps) 8.5A
Function Receiver, Transmitter
Inductance 6.9μH, 6.4μH
DC Resistance (DCR) 52mOhm Max
Frequency - Self Resonant 15MHz 19MHz
Q @ Freq 120 @ 125kHz, 115 @ 125kHz
Current - Saturation 20A
Inductance Tolerance 10%
Compliance
RoHS Status ROHS3 Compliant
