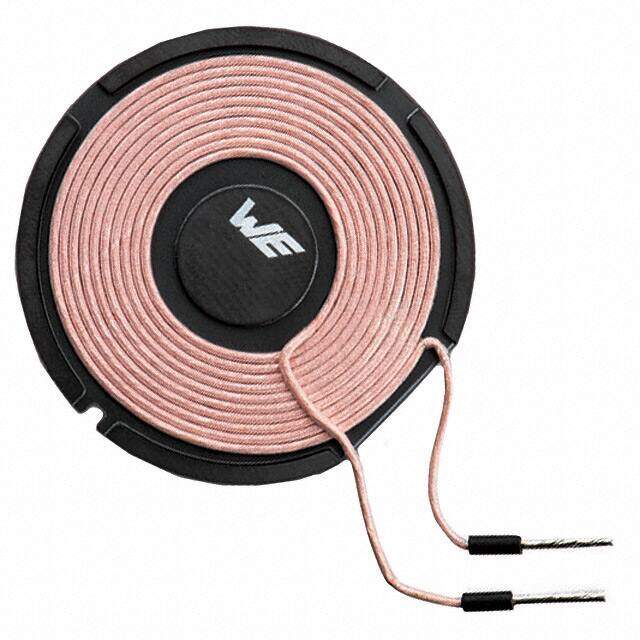

760308100111
RoHS
RoHS compliant
RoHS compliantPackage 120
Category Inductors, Coils, Chokes / Wireless Charging Coils
Description
WE-WPCC 120 1.97Dia x 0.19H 50.0mmx4.7mm 6.3muH
PDF
/
Buying Options
Total Price: USD $23.28
Unit Price: USD $23.275091
≥1 USD $23.275091
≥200 USD $9.287455
≥500 USD $8.97761
≥1000 USD $8.824001
Inventory: 2270
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 4.7mm
Length 50mm
Height 4.826mm
Diameter 50mm
Technical
Inductance Tolerance 10%
Q Factor 120
Current - Saturation 10A
Q @ Freq 120 @ 125kHz
Frequency - Self Resonant 24MHz
DC Resistance (DCR) 48mOhm Max
Inductance 6.3μH
Function Transmitter
Current Rating 6A
Current Rating (Amps) 6A
Min Operating Temperature -20°C
Max Operating Temperature 105°C
Resistance 40mOhm
Type 1 Coil, 1 Layer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 1.97Dia x 0.19 H 50.0mmx4.7mm
Series WE-WPCC
Packaging Cut Tape
Operating Temperature -20°C~105°C
Physical
Package / Case 120
Supply Chain
Factory Lead Time 17 Weeks
