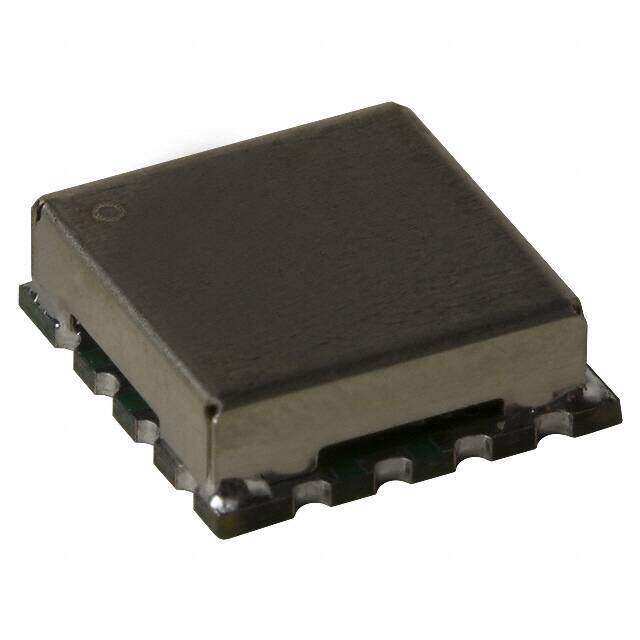

VCO790-2300T
RoHS
/
Package 16-QFN, Variant
Category Crystals, Oscillators, Resonators / VCOs (Voltage Controlled Oscillators)
Description
VCO 2300MHZ 0.5-4.5V 12.7X12.7MM
PDF
/
Inventory: 961
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height 0.177 4.49mm
Technical
Modulation Sensitivity 215 MHz/V
Pushing (MHz/V) 25
Power (dBm) 3 ±3
Tuning Voltage (VDC) 0.5V~4.5V
2nd Harmonic, Typ (dBc) 10
Phase Noise Typ (dBc/Hz) -90
Icc Max 30mA
Frequency - Cutoff or Center 2300MHz
Control Voltage-Min 0.5V
Control Voltage-Max 4.5V
Frequency Range 2100MHz~2500MHz
Output Power 3dBm
Supply Current-Max 20mA
Oscillator Type VOLTAGE CONTROLLED OSCILLATOR
Operating Supply Current 15mA
Physical Dimension 12.7mm x 12.7mm x 3.9624mm
Frequency 2.3GHz
Reach Compliance Code unknown
Supply Voltage 5V
Voltage - Supply 5V
Terminal Finish Tin/Lead (Sn/Pb)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Size / Dimension 0.500Lx0.500W 12.70mmx12.70mm
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 16-QFN, Variant
Mount Surface Mount
