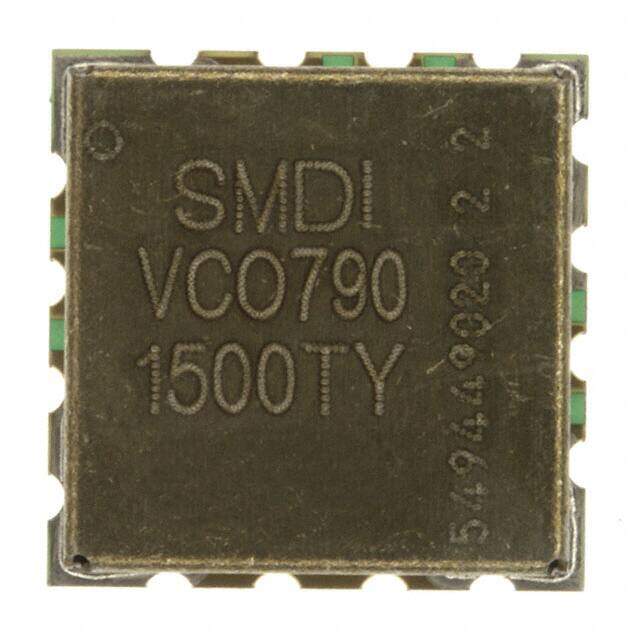

VCO790-1500TY
RoHS
/
Package 16-QFN, Variant
Category Crystals, Oscillators, Resonators / VCOs (Voltage Controlled Oscillators)
Description
VCO 1500MHZ 0.5-20V 12.7X12.7MM
PDF
/
Inventory: 5557
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 0.177 4.49mm
Technical
Pushing (MHz/V) 5
Power (dBm) 6.5 ±3.5
Tuning Voltage (VDC) 0.5V~20V
2nd Harmonic, Typ (dBc) -9
Phase Noise Typ (dBc/Hz) -97
Icc Max 30mA
Frequency - Cutoff or Center 1500MHz
Frequency Range 1000MHz~2000MHz
Supply Current-Max 30mA
Operating Supply Current 25mA
Power Supplies 5V
Operating Frequency 2000MHz
Qualification Status Not Qualified
Frequency 1.5GHz
Supply Voltage 5V
Voltage - Supply 5V
Subcategory Other Oscillators
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.500Lx0.500W 12.70mmx12.70mm
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 16-QFN, Variant
Mount Surface Mount
