1654329
RoHS
/
Package /
Category Connectors, Interconnects / USB, DVI, HDMI Connectors - Adapters
Description

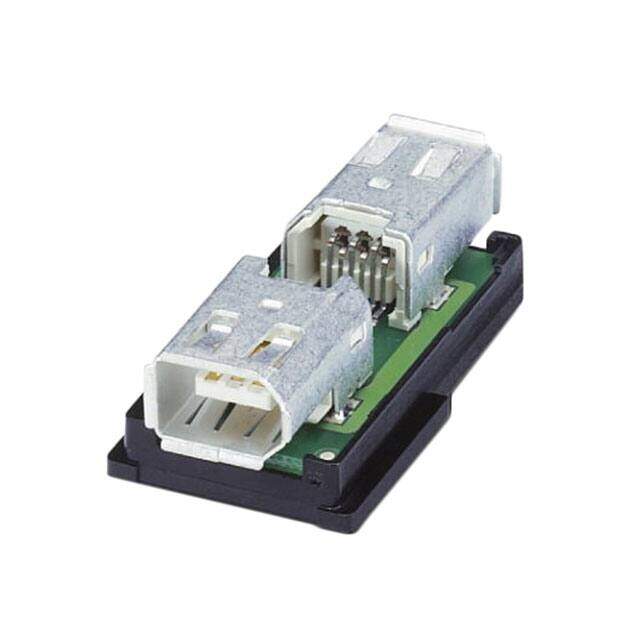

Conn IEEE 1394 F/F 6/6 POS RA Panel Mount 6 Terminal 2 Port
PDF
/
Inventory: 1147
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 23mm
Technical
Convert To (Adapter End) Firewire (IEEE 1394), Receptacle
Convert From (Adapter End) Firewire (IEEE 1394), Receptacle
Number of Ports 1
Empty Shell NO
UL Flammability Code 94V-0
Number of Contacts 12
Reach Compliance Code unknown
Depth 40.5mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Female
Min Operating Temperature -15°C
Max Operating Temperature 65°C
Connector Type Socket
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Series PLUSCON VS
Published 2010
Physical
Weight 16.800012g
Housing Material Polycarbonate
Mounting Type Board Mounted
Mount Panel
Contact Plating Gold
Contact Material COPPER ALLOY
Supply Chain
Factory Lead Time 6 Weeks
