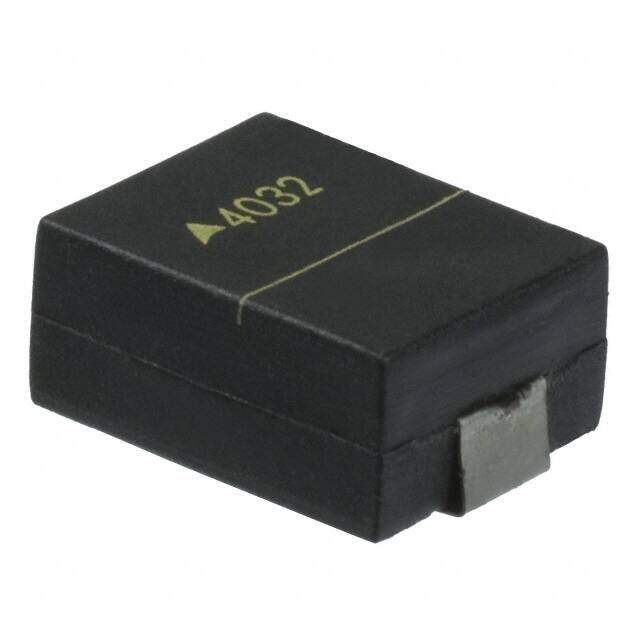

B72660M0301K072
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Circuit Protection / TVS - Varistors, MOVs
Description
CU Series Metal OxideVaristor 90pF 10A; Clamping 775V; Varistor 470V 4032 Case
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.8976
≥1 USD $0.8976
≥10 USD $0.8008
≥100 USD $0.76032
≥500 USD $0.624536
≥1000 USD $0.583792
≥3000 USD $0.515909
Inventory: 1293
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Circuit RMS Voltage-Max 300V
Circuit DC Voltage-Max 385V
Current - Surge 1.2kA
Maximum DC Volts 385V
Maximum AC Volts 300V
Varistor Voltage (Typ) 470V
Varistor Voltage (Min) 423V
Energy 23J
Varistor Voltage (Max) 517V
Capacitance @ Frequency 90pF @ 1kHz
Terminal Placement DUAL
Number of Circuits 1
Rated Power Dissipation (P) 0.25W
Resistor Type VARISTOR
Technology METAL OXIDE FILM
Subcategory Non-linear Resistors
Terminal Finish Tin (Sn)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Terminal Shape J BEND
Surface Mount YES
Package / Case 2-SMD, J-Lead
Mounting Type Surface Mount, MLCV
Supply Chain
Factory Lead Time 16 Weeks
