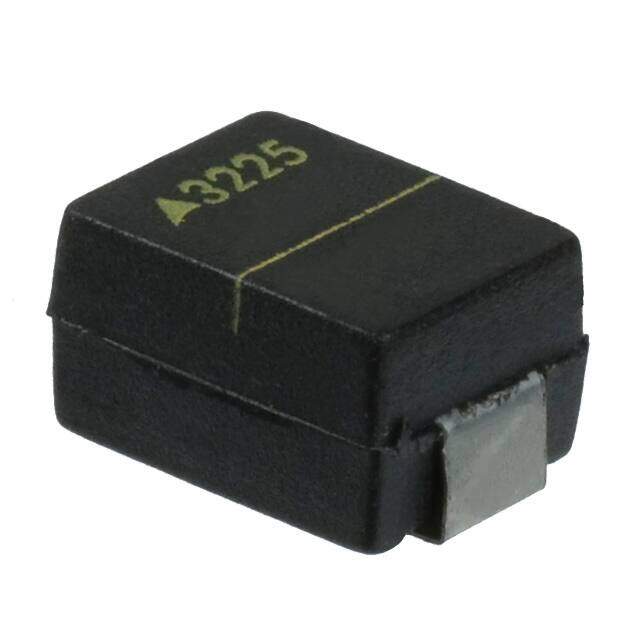

B72650M0200K072
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Circuit Protection / TVS - Varistors, MOVs
Description
Var MLV 20VAC/26VDC 100A 33V 3225 SMD Blister T/R
PDF
/
Buying Options
Total Price: USD $0.82
Unit Price: USD $0.8184
≥1 USD $0.8184
≥10 USD $0.7172
≥100 USD $0.673376
≥500 USD $0.54956
≥1000 USD $0.51047
≥3000 USD $0.434438
Inventory: 2357
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Circuit RMS Voltage-Max 20V
Circuit DC Voltage-Max 26V
Current - Surge 100A
Maximum DC Volts 26V
Maximum AC Volts 20V
Varistor Voltage (Typ) 33V
Varistor Voltage (Min) 29.7V
Energy 0.60J
Varistor Voltage (Max) 36.3V
Capacitance @ Frequency 980pF @ 1kHz
Terminal Placement DUAL ENDED
Number of Circuits 1
Resistor Type VARISTOR
Technology METAL OXIDE FILM
Packing Method TR
Subcategory Non-linear Resistors
Terminal Finish Tin (Sn)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Terminal Shape J BEND
Surface Mount YES
Package / Case 2-SMD, J-Lead
Mounting Type Surface Mount, MLCV
Supply Chain
Factory Lead Time 16 Weeks
