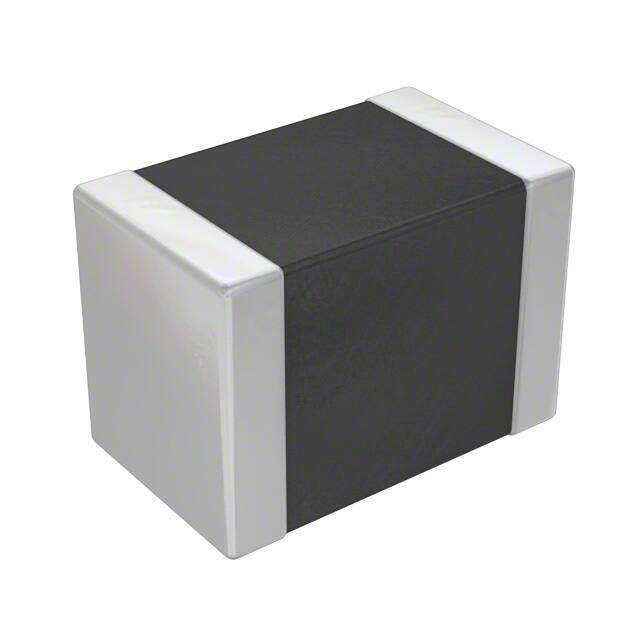

B72510E0200K062
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Circuit Protection / TVS - Varistors, MOVs
Description
Varistor: metal-oxide; 20VAC; SMD; 0805; 0.3J; 26VDC; 80A; 5mW
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4048
≥1 USD $0.4048
≥10 USD $0.35024
≥100 USD $0.327008
≥500 USD $0.261536
≥1000 USD $0.24288
≥3000 USD $0.205515
Inventory: 19970
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Circuit RMS Voltage-Max 20V
Circuit DC Voltage-Max 26V
Current - Surge 80A
Maximum DC Volts 26V
Maximum AC Volts 20V
Varistor Voltage (Typ) 33V
Varistor Voltage (Min) 29.7V
Energy 0.30J
Varistor Voltage (Max) 36.3V
Capacitance @ Frequency 300pF @ 1kHz
Terminal Placement DUAL ENDED
Number of Circuits 1
Rated Power Dissipation (P) 0.005W
Reference Standard AEC-Q200
Reach Compliance Code unknown
Resistor Type VARISTOR
Technology METAL OXIDE FILM
Packing Method TR, BLISTER, 7 INCH
Subcategory Non-linear Resistors
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Cut Tape (CT)
Operating Temperature -55°C~150°C TA
Physical
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount, MLCV
Supply Chain
Factory Lead Time 7 Weeks
