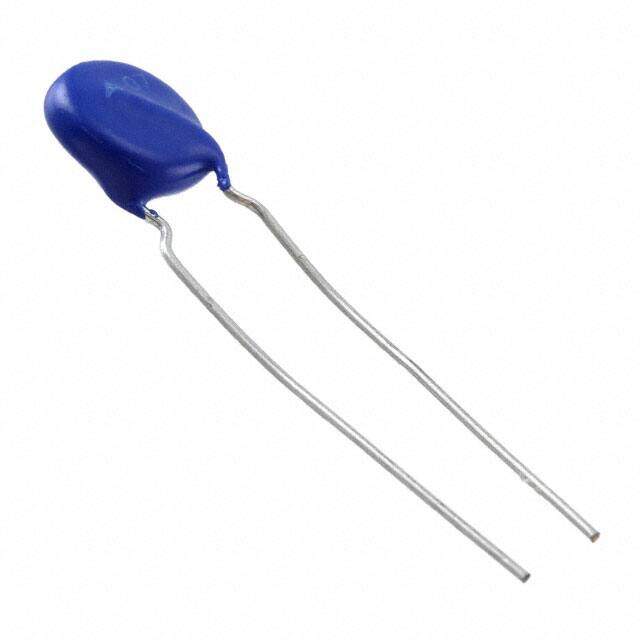

B72207S2231K101
RoHS
RoHS compliant
RoHS compliantPackage Disc 7mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
VARISTOR 360V 1.75KA DISC 7MM
PDF
/
Buying Options
Total Price: USD $0.29
Unit Price: USD $0.2904
≥1 USD $0.2904
≥10 USD $0.2376
≥100 USD $0.217536
≥500 USD $0.16192
≥1000 USD $0.146749
≥3000 USD $0.121458
Inventory: 2910
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Through Hole
Package / Case Disc 7mm
Surface Mount NO
Terminal Shape WIRE
Technical
Operating Temperature -40°C~105°C TA
Packaging Bulk
Series AdvanceD
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin (Sn)
Subcategory Non-linear Resistors
Technology METAL OXIDE FILM
Resistor Type VARISTOR
Rated Power Dissipation (P) 0.25W
Number of Circuits 1
Terminal Placement RADIAL
Capacitance @ Frequency 130pF @ 1kHz
Varistor Voltage (Max) 396V
Energy 23J
Varistor Voltage (Min) 324V
Varistor Voltage (Typ) 360V
Maximum AC Volts 230V
Maximum DC Volts 300V
Current - Surge 1.75kA
Circuit DC Voltage-Max 300V
Circuit RMS Voltage-Max 230V
Compliance
RoHS Status ROHS3 Compliant
