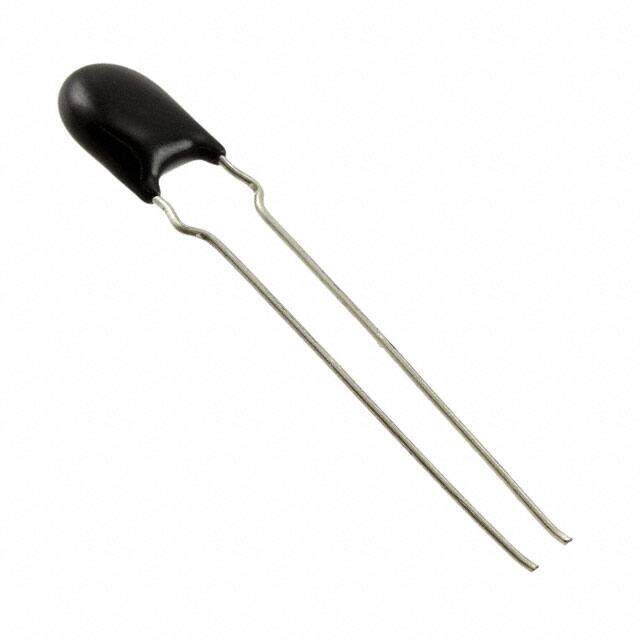

ERZ-VA7V680
RoHS
RoHS compliant
RoHS compliantPackage Disc 7mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
Var 40VAC/56VDC 500A 68V Radial T/R
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
≥10 USD $0.3168
≥100 USD $0.289696
≥500 USD $0.215512
≥1000 USD $0.19529
≥3000 USD $0.161621
Inventory: 189
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Disc 7mm
Terminal Shape WIRE
Technical
Operating Temperature -40°C~85°C TA
Packaging Cut Tape (CT)
Published 2012
Series ZNR?
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8533.40.40.00
Capacitance 1.2nF
Voltage - Rated DC 56V
Packing Method TR
Depth 5.2mm
Resistor Type VARISTOR
Voltage - Rated AC 40V
Rated Power Dissipation (P) 0.02W
Lead Pitch 5mm
Number of Circuits 1
Max Voltage Rating (AC) 40V
Max Voltage Rating (DC) 56V
Lead/Base Style Radial
Clamping Voltage 135V
Max Surge Current 500A
Capacitance @ Frequency 11500pF @ 1kHz
Varistor Voltage (Max) 75V
Energy 4.1J
Varistor Voltage (Min) 61V
Varistor Voltage (Typ) 68V
Varistor Voltage 68V
Clamping Current 2.5A
Dimensions
Diameter 7mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
