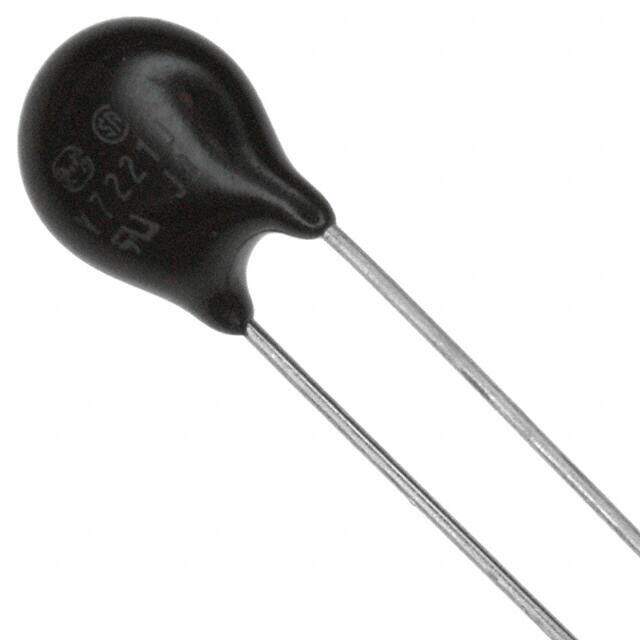

ERZ-V07D151
RoHS
RoHS compliant
RoHS compliantPackage Disc 8.5mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
Var 95VAC/125VDC 1750A 150V Radial Bulk
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3344
≥1 USD $0.3344
≥10 USD $0.27104
≥100 USD $0.1848
≥500 USD $0.103928
≥1000 USD $0.089496
≥3000 USD $0.083723
Inventory: 1188
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Disc 8.5mm
Terminal Shape WIRE
Material Zinc
Technical
Operating Temperature -40°C~85°C TA
Packaging Bulk
Published 2010
Series ZNR?
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin (Sn)
Capacitance 500pF
Power Rating 250mW
Voltage - Rated DC 125V
Technology METAL OXIDE FILM
Depth 4.8mm
Resistor Type VARISTOR
Voltage - Rated AC 95V
Lead Pitch 5mm
Number of Circuits 1
Max Voltage Rating (AC) 95V
Power Dissipation 250mW
Max Voltage Rating (DC) 125V
Lead/Base Style Radial
Clamping Voltage 250V
Max Surge Current 1.75kA
Capacitance @ Frequency 500pF @ 1kHz
Varistor Voltage (Max) 165V
Energy 13J
Varistor Voltage (Min) 135V
Maximum AC Volts 95V
Varistor Voltage 150V
Clamping Current 10A
Dimensions
Diameter 7mm
Length 11.5mm
Thickness 4.8mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
